Pilot EX, 3.5 4
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Connector End Views
>>
Connector End Views
>>
APP Sensor (View 227)
APP Sensor (View 227)
BLK
Under Left Side of Dash
On Right Engine Compartment Wire Harness

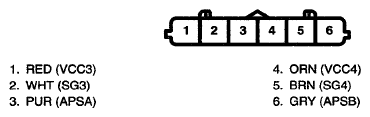

Fig 1: APP Sensor Connector Terminal (View 227)
