Pilot EX, 3.5 4
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Accessory Power Sockets
>>
Circuit Diagram
Circuit Diagram

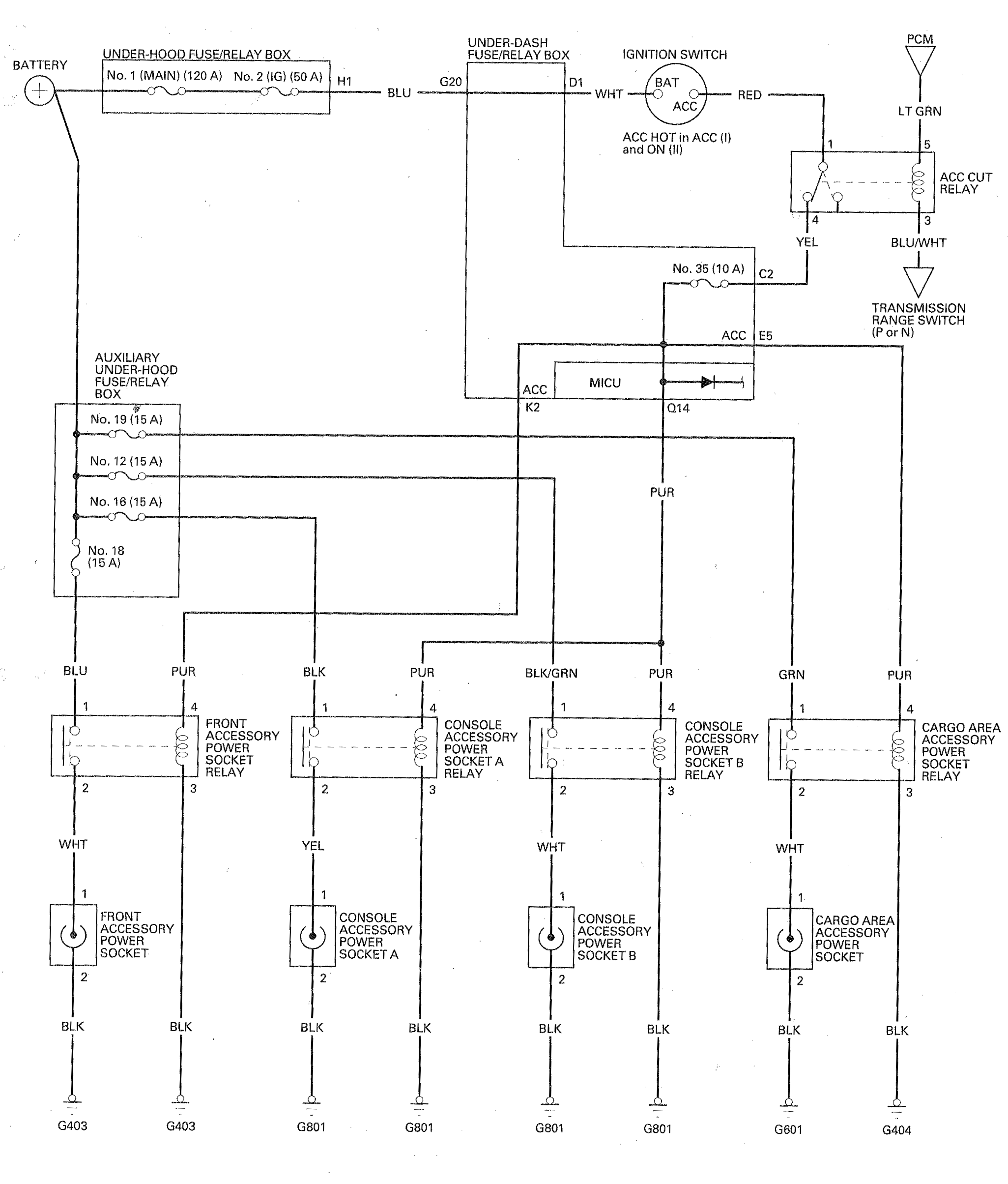

Fig 1: Identifying Accessory Power Sockets - Circuit Diagram
