Component Location Index

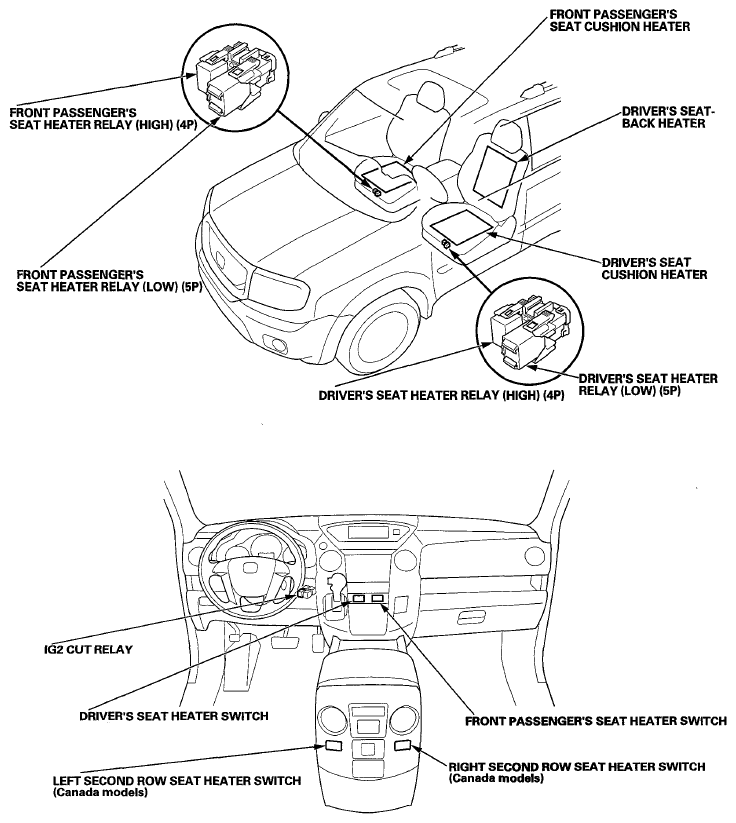

Fig 1: Identifying Seat Heaters Components Location
G05966529Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Identifying Seat Heaters Components Location (Canada Models)
G05966530Courtesy of AMERICAN HONDA MOTOR CO., INC.
