Rearview Monitor Mirror Input Test/Replacement

NOTE: The normal operating temperature range of rearview monitor mirror is -22°F to 176°F (-30°C to 80°C). Allow the inside temperature of the vehicle to stabilize within the normal operating range before testing.
  1. Turn the ignition switch to ON (II)
  2. Check the auto dimming inside mirror indicator. If the indicator flashing two times, and then turns on, there is a malfunction in the mirror. Replace it.
  3. Remove the roof console (see step 2 on HEADLINER REMOVAL/INSTALLATION ).
  4. Disconnect the 12P connector (A) from the roof wire harness (B).

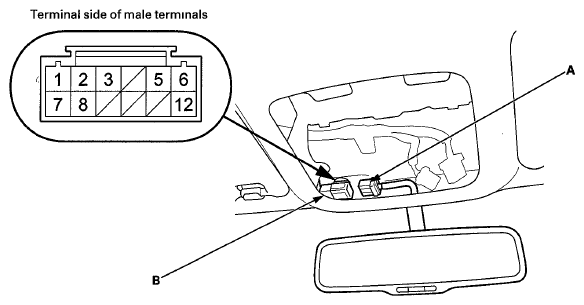

    Fig 1: Identifying Roof Wire Harness & 12P Connector
    G05966510Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Inspect the connector and socket terminals to be sure they are all making good contact.
    • If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
    • If the terminals look OK, go to step  6.
  6. Remove the tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
  7. With the connector still disconnected, do these input tests.
    NOTE: Make sure the connector is connected while testing terminals 12, 5 and 6. Make sure the connector is disconnected while testing terminals 3, 8, 2, 1 and 7.
    • If any test indicates a problem, find and correct the cause, then recheck the system.
    • If the input tests prove OK. Substitute and connect a known-good rearview camera and check the monitor image in reverse. If the symptom is gone, the rearview camera is faulty; replace it (see REARVIEW CAMERA REMOVAL/INSTALLATION ). If the symptom is still present, the rearview mirror is faulty; replace it.
      WIRE CONDITION TABLE

      Cavity Wire Test condition Test: Desired result Possible cause if desired result is not obtained
      12 BLK In all ignition switch positions Measure the voltage between the terminal No. 12 and body ground:
      There should be less than 0.2 V.
      • An open or high resistance in the ground wire
      • Poor ground (G701)
      5 YEL Ignition switch ON (II) Measure the voltage between the terminal No. 12 and body ground:
      There should be battery voltage.
      • An open or high resistance in the ground wire
      • Faulty under-dash fuse relay box
      • Faulty IG2 cut relay
      • Blown No. 36 (10 A) fuse in the under-dash fuse/relay box
      6 ORN Ignition switch ON (II) and the transmission range switch in R position Measure the voltage between the terminal No. 6 and body ground:
      There should be battery voltage.
      • An open or high resistance in the wire.
      • Blown No. 10 (7.5 A) fuse in the under-dash fuse/relay box
      • Faulty under-dash fuse-relay box
      • Faulty or improperly adjusted transmission range switch
      • Poor ground (G101) or an open in the ground wire
      3 WHT Disconnect the rearview camera 6P connector Check for continuity between the terminal No. 3 and rearview camera 6P connector terminal No. 6:
      There should be continuity.
      An open or high resistance in the wire.
      Check for continuity between the terminal No. 3 and body ground:
      There should be no continuity.
      A short to ground in the wire
      8 RED Disconnect the rearview camera 6P connector Check for continuity between the terminal No. 8 and rearview camera 6P connector terminal No. 5:
      There should be continuity.
      An open or high resistance in the wire.
      Check for continuity between the terminal No. 8 and body ground:
      There should be no continuity.
      A short to ground in the wire
      2 GRN Disconnect the rearview camera 6P connector Check for continuity between the terminal No. 2 and rearview camera 6P connector terminal No. 4:
      There should be continuity.
      An open or high resistance in the wire.
      Check for continuity between the terminal No. 2 and body ground:
      There should be no continuity.
      A short to ground in the wire
      1 BLK Disconnect the rearview camera 6P connector Check for continuity between the terminal No. 1 and rearview camera 6P connector terminal No. 3:
      There should be continuity.
      An open or high resistance in the wire.
      Check for continuity between the terminal No. 1 and body ground: There should be no continuity. A short to ground in the wire
      7 GRY Disconnect the rearview camera 6P connector Check for continuity between the terminal No. 7 and rearview camera 6P connector terminal No. 2:
      There should be continuity.
      An open or high resistance in the wire.
