Repair and Diagnosis
>>
Body & Frame
>>
Mirrors
>>
Rearview Monitor Mirror
>>
Component Location Index
Component Location Index

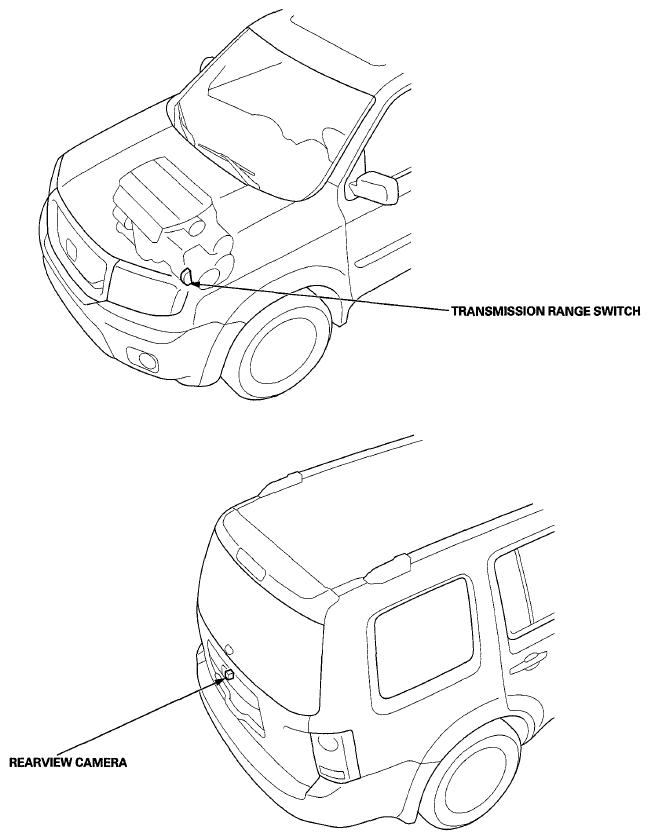

Fig 1: Identifying Transmission Range Switch & Rearview Camera Replacement Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.

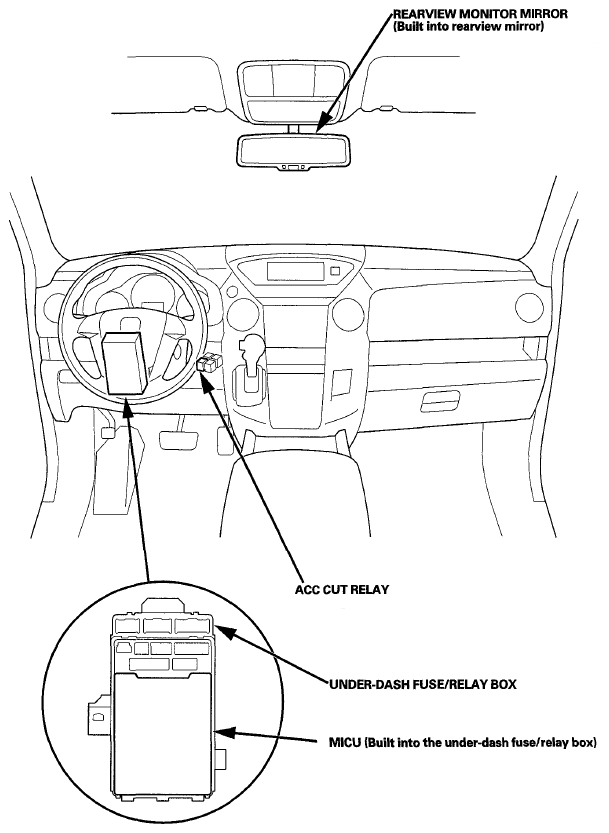

Fig 2: Identifying Rearview Monitor Mirror, ACC Cut Relay & Relay Box Replacement Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
