Home
>>
Honda
>>
2011
>>
Pilot EX, 3.5 4
>>
Repair and Diagnosis
>>
Body & Frame
>>
Mirrors
>>
Rearview Monitor Mirror
>>
Circuit Diagram
Circuit Diagram

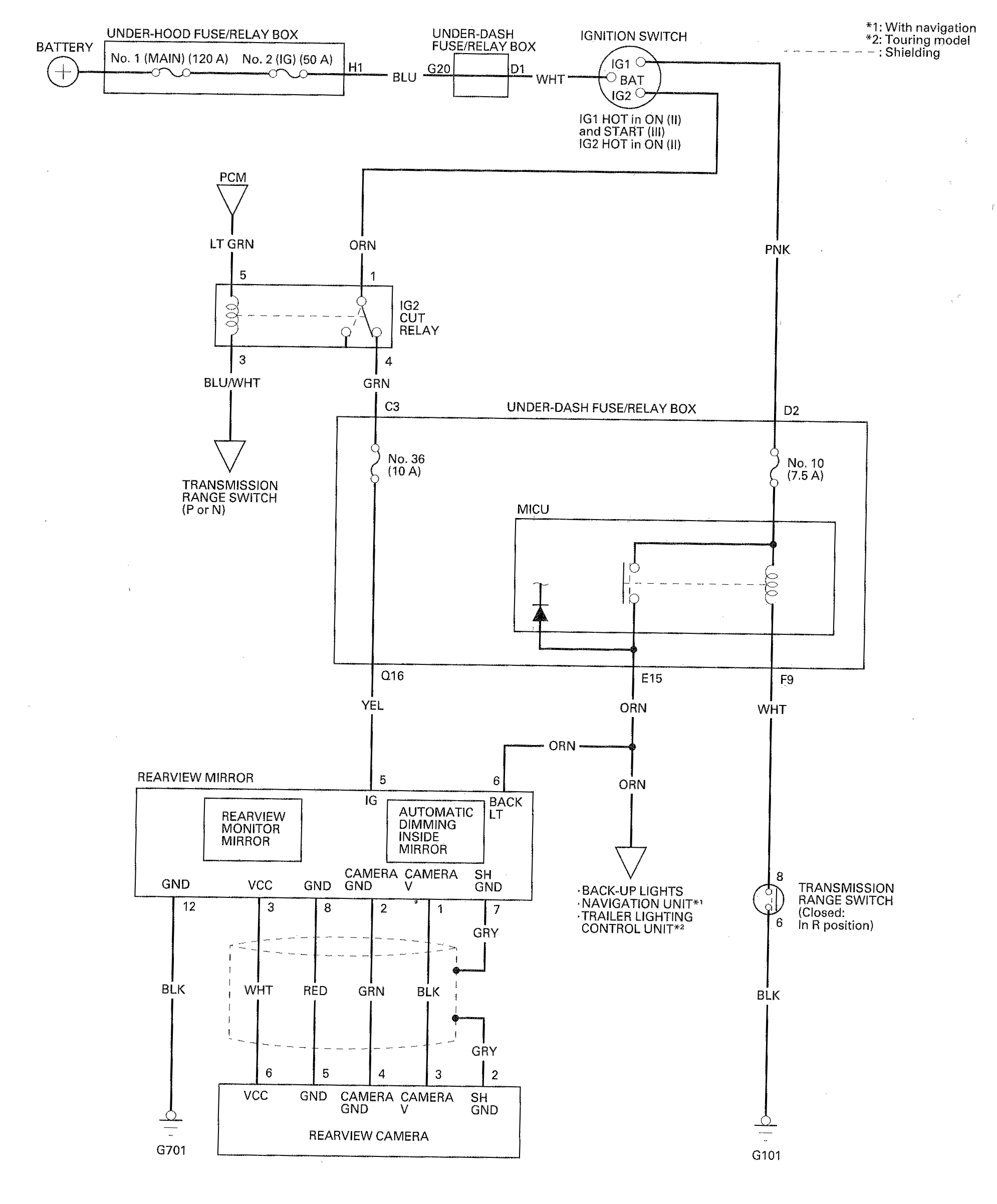

Fig 1: Identifying Rearview Monitor Mirror - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
