Symptom Troubleshooting Using Malfunctioning Circuit Functions

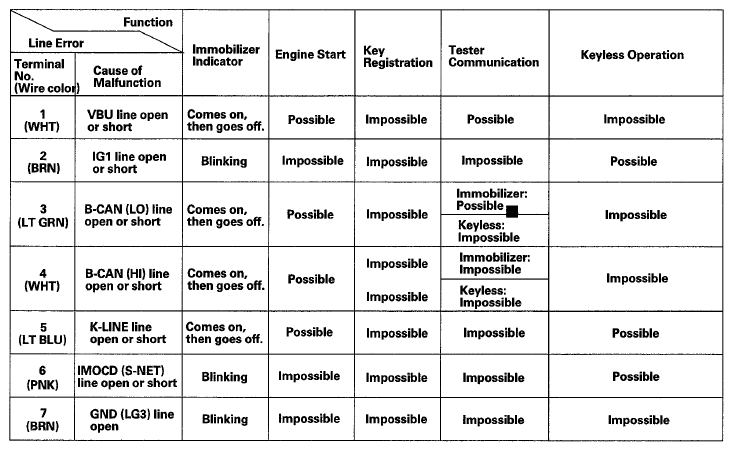

If a malfunction occurs in the immobilizer circuit, use the table to cross-reference the malfunctioning function to the line(s) that should be checked table:
NOTE:
To test the malfunctioning circuits, do IMMOBILIZER-KEYLESS CONTROL UNIT INPUT TEST
.
