Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Audio System
>>
Circuit Diagram
>>
Without Navigation
Without Navigation

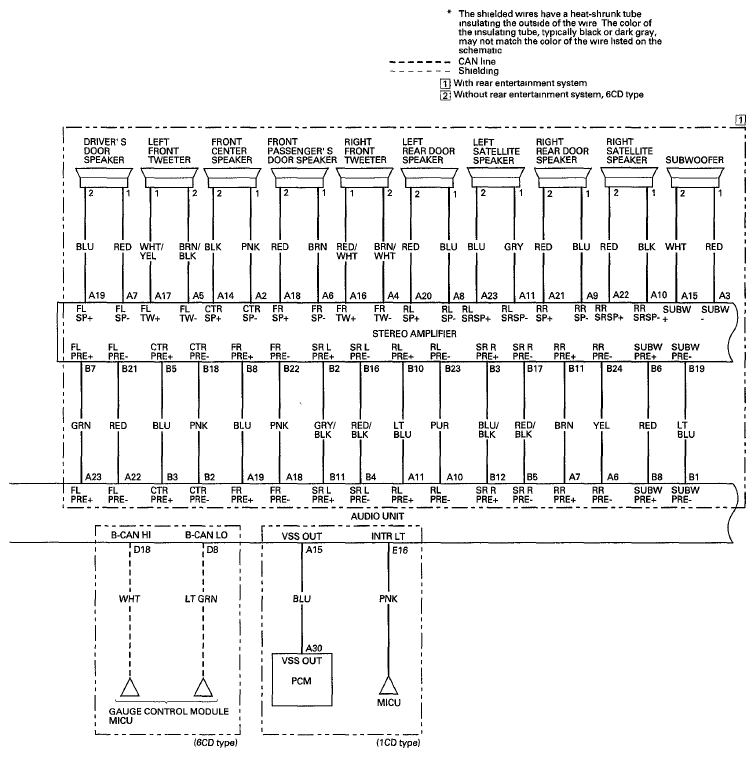

Fig 1: Identifying Audio Unit Circuit Diagram - Without Navigation (1 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

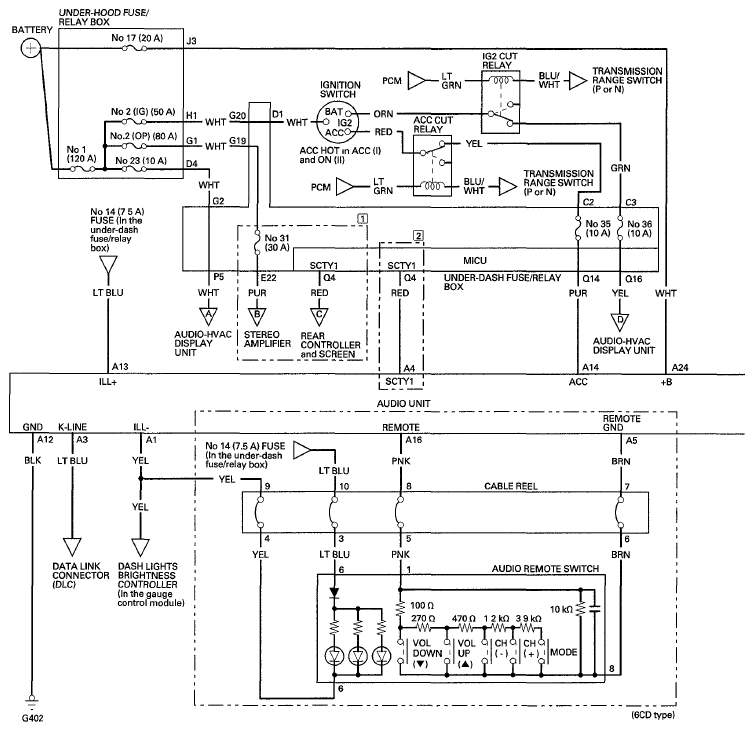

Fig 2: Identifying Audio Unit Circuit Diagram - Without Navigation (2 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

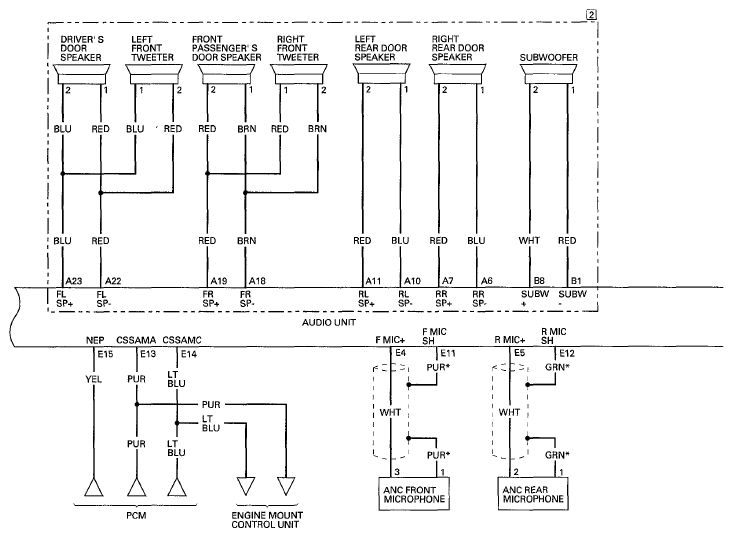

Fig 3: Identifying Audio Unit Circuit Diagram - Without Navigation (3 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

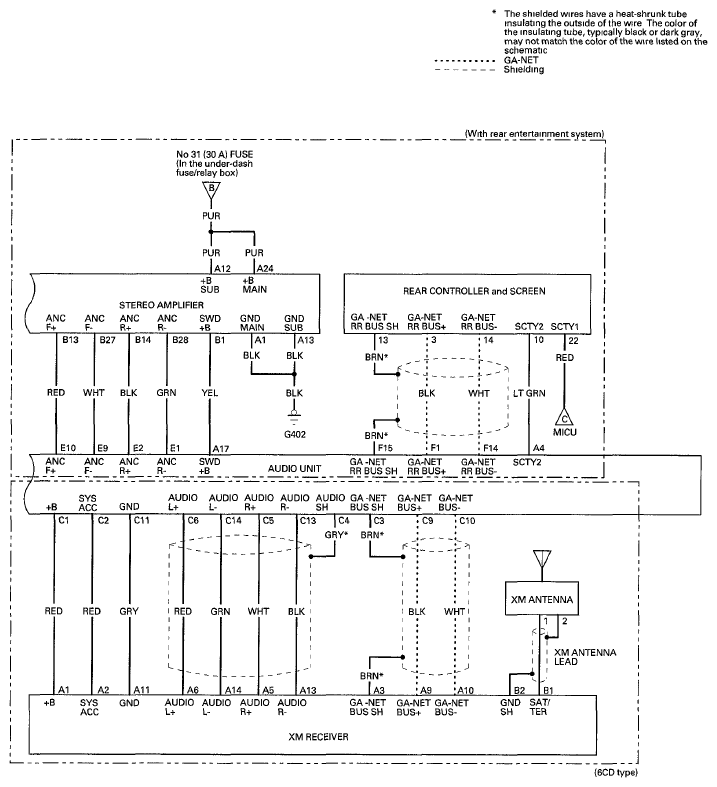

Fig 4: Identifying Audio Unit Circuit Diagram - Without Navigation (4 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

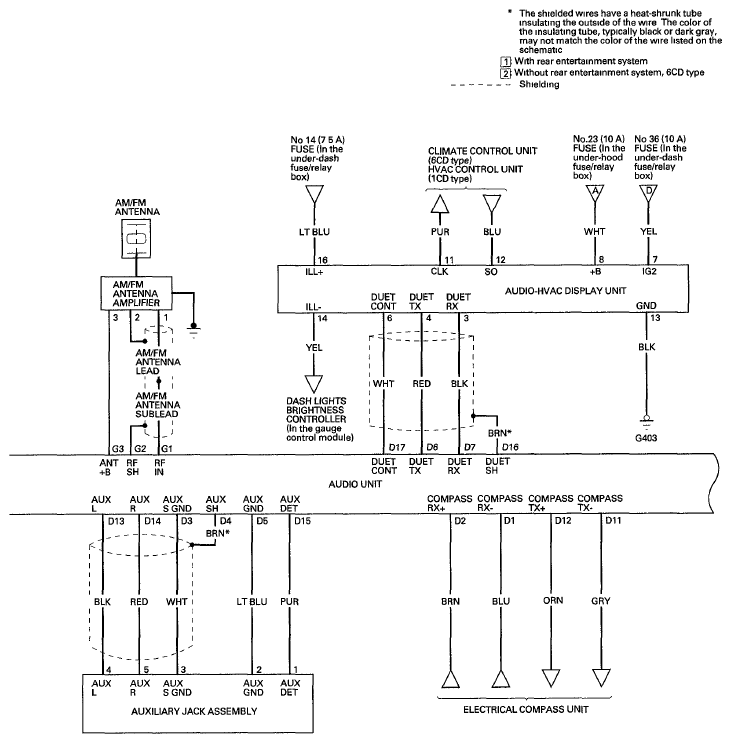

Fig 5: Identifying Audio Unit Circuit Diagram - Without Navigation (5 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
