Pilot EX, 3.5 3
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission
>>
A/T Gear Position Indicator
>>
Circuit Diagram
Circuit Diagram

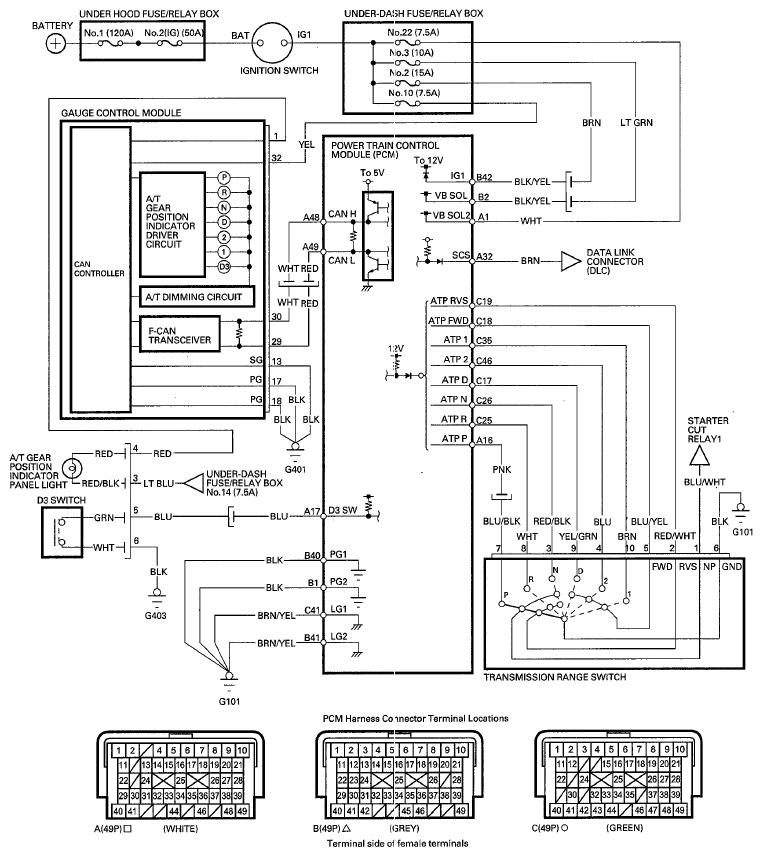

Fig 1: Identifying A/T Gear Position Indicator - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
