A/T Gear Position Indicator Panel Replacement

NOTE:
  • Refer to SHIFT LEVER DISASSEMBLY/REASSEMBLY  as needed during the following procedures.
  • Make sure not to get any silicone grease on the terminal part of the connectors and switches, especially if you have silicone grease on your hands or gloves.
  1. Remove these items:
  2. Shift the shift lever to N.
  3. Disconnect the D3 switch connector (A).

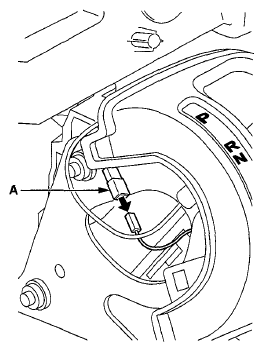

    Fig 1: Identifying D3 Switch Connector
    G05961947Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the screws (C), and remove the shift lever knob (D) from the shift lever.

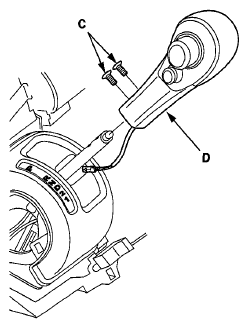

    Fig 2: Identifying Shift Lever Knob & Screws
    G05961948Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the A/T gear position indicator panel light socket (A) from the indicator panel (B), and remove the A/T gear position indicator panel.

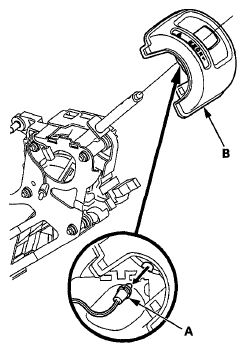

    Fig 3: Identifying A/T Gear Position Indicator Panel Light Socket & Indicator Panel
    G05961949Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Disassemble the indicator panel (C), the escn body (D), the select cover (E).
    Fig 4: Identifying Indicator Panel, Escn Body & Select Cover
    G05961950Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Install the new indicator panel, the escn body, the select cover, and assemble the A/T gear position indicator panel.
  8. Install the A/T gear position indicator panel (A), and install the A/T gear position indicator panel light socket (B) in the indicator panel.

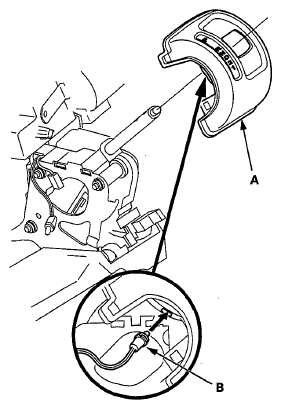

    Fig 5: Identifying A/T Gear Position Indicator Panel & Light Socket
    G05961951Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Apply silicone grease to the top of the shift lever rod (A), and install the shift lever knob (B).

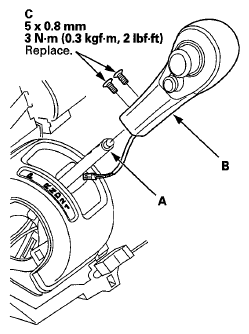

    Fig 6: Shift Lever Rod & Knob With Torque Specifications
    G05961952Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Secure the shift lever knob with the new screws (C).
  11. Install the shift lever assembly (see SHIFT LEVER INSTALLATION  ).
  12. Connect the D3 switch connector (C).

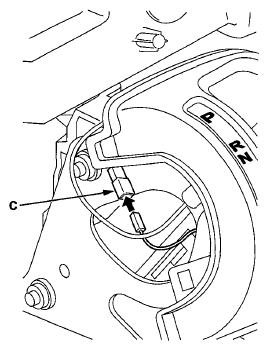

    Fig 7: Identifying D3 Switch Connector & Screws
    G05961953Courtesy of AMERICAN HONDA MOTOR CO., INC.
  13. Install these items:
