Wiper/Washer Switch (View 275)
Wiper/Washer Switch (View 275)
BLK/WHT
In Steering Column Cover
On Dashboard Wire Harness

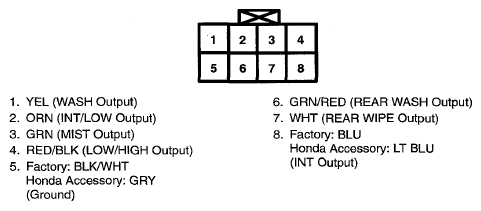

Fig 1: Wiper/Washer Switch Connector Terminal (View 275)
