VTM-4 Control Unit (4WD) (View 382)

• GRY
• Left Side of Cargo Area
• On Floor Wire Harness

Connector A

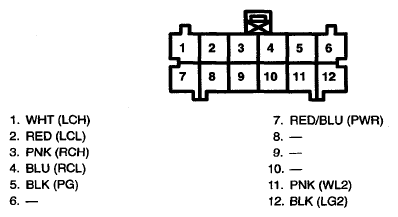

Fig 1: VTM-4 Control Unit (4WD) Connector A Terminal (View 382)

Connector B

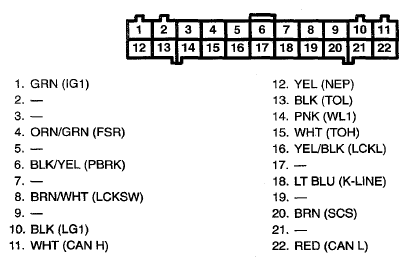

Fig 2: VTM-4 Control Unit (4WD) Connector B Terminal (View 382)
