Right Headlight (View 109)
Right Headlight (View 109)
On Right Engine Compartment Wire Harness
Connector A
BLK
Right Front of Engine Compartment

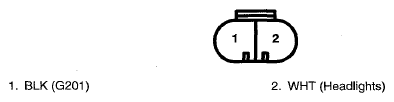

Fig 1: Right Headlight Connector A Terminal (View 109)
Connector B
BLU
Right Front of Engine Compartment

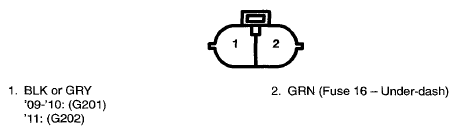

Fig 2: Right Headlight Connector B Terminal (View 109)
