Rear Controller and Screen (RES) (View 343)
Rear Controller and Screen (RES) (View 343)
GRY
Middle of Roof
On RES Wire Harness

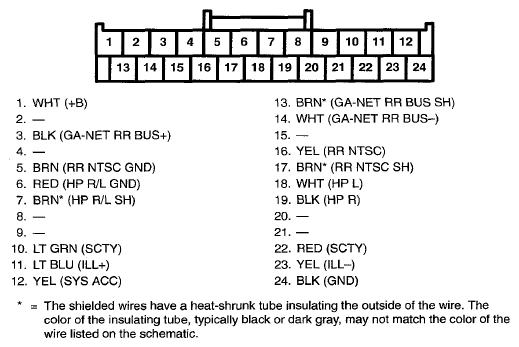

Fig 1: Rear Controller And Screen (RES) Connector Terminal (View 343)
