Driver's Power Window Motor (View 236)
Driver's Power Window Motor (View 236)
BLK
Driver's Door
On Driver's Door Wire Harness

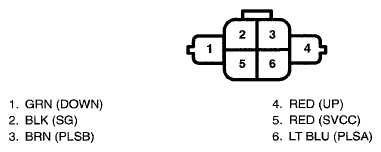

Fig 1: Driver's Power Window Motor Connector Terminal (View 236)
