Cable Reel (View 359)

Connector A

• YEL
• In Steering Column Cover

Fig 1: Cable Reel Connector A Terminal (View 359)

Connector B

• WHT
• In Steering Column Cover
• On Dashboard Wire Harness

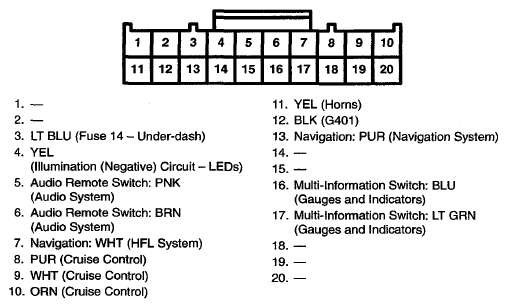

Fig 2: Cable Reel Connector B Terminal (View 359)

Connector C

• WHT
• Steering Wheel
• On Cable Reel Sub-harness

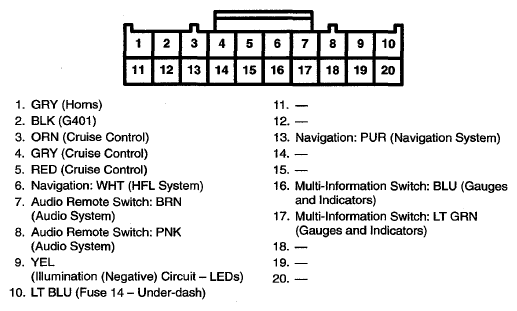

Fig 3: Cable Reel Connector C Terminal (View 359)
