C501 (View 341)

WHT
Left Side of Cargo Area
Connects Floor Wire Harness to Rear Wire Harness
'09-'10:

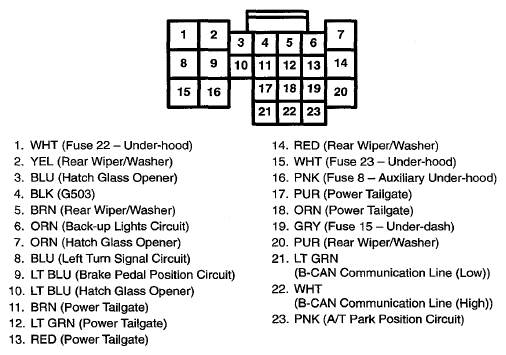

Fig 1: C501 ('09-'10) Connector Terminal (View 341)

'11: without Power Tailgate:

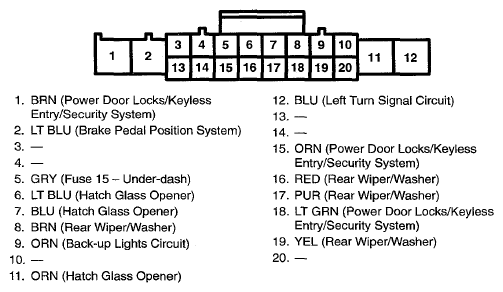

Fig 2: C501 ('11: Without Power Tailgate) Connector Terminal (View 341)

'11: Power Tailgate:

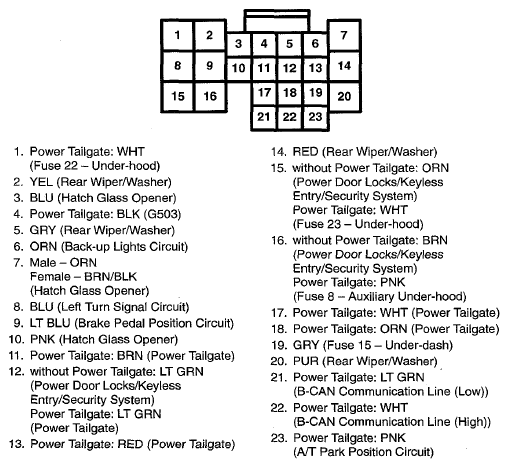

Fig 3: C501 ('11: Power Tailgate) Connector Terminal (View 341)
