Pilot EX, 3.5 3
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Connector End Views
>>
Connector End Views
>>
C207 (View 135)
C207 (View 135)
BRN
Under Left Side of Dash
Connects Floor Wire Harness to Left Engine Compartment Wire Harness

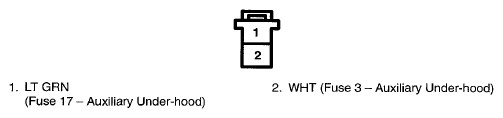

Fig 1: C207 Connector Terminal (View 135)
