Front Bank (Bank 2)

  1. Disconnect the front secondary HO2S 4P connector (A), and remove the harness clamps (B).
    Fig 1: Identifying Front Secondary HO2S 4P Connector & Harness Clamps
    G05969704Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Lift the vehicle, and support it with jackstands.
  3. Remove the harness clamp (A), then remove the front secondary HO2S (B).

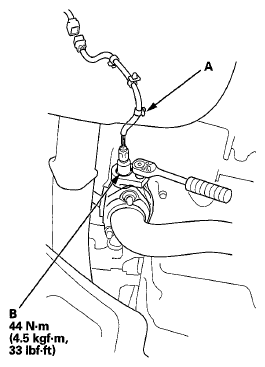

    Fig 2: Harness Clamp & Front Secondary HO2S With Torque Specifications
    G05969705Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the parts in the reverse order of removal.
