Starter Removal and Installation: Installation

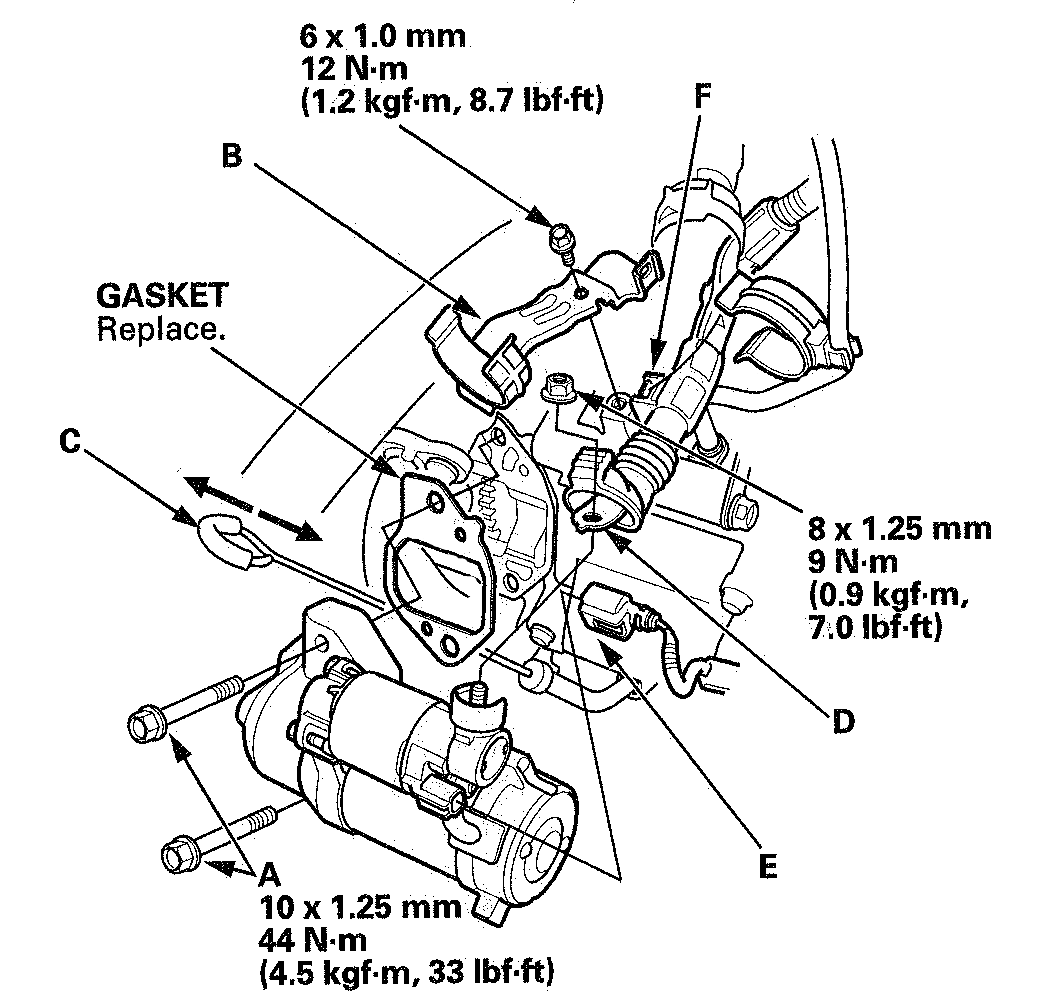

- Install the starter using a new gasket, then install the lower radiator hose bracket (A) and the dipstick (B).NOTE: Always use a new gasket.
- Install the lower radiator hose bracket (B) and the dipstick.(C)
- Connect the positive starter cable (D) and the S terminal connector (E) to the starter, then install the harness clamp (F). Make sure the crimped side of the ring terminal faces away from the starter when you connect it.
- Install the battery base (see step 56 on ENGINE INSTALLATION ).
- Do the battery installation procedure (see BATTERY REMOVAL AND INSTALLATION ).
- Install the air intake duct (see FRONT BULKHEAD COVER REPLACEMENT ).
- Start the engine to make sure the starter works properly.
