Pilot EX, 3.5 3
>>
Repair and Diagnosis
>>
Electrical
>>
Starter
>>
Starting System
>>
Circuit Diagram
Circuit Diagram

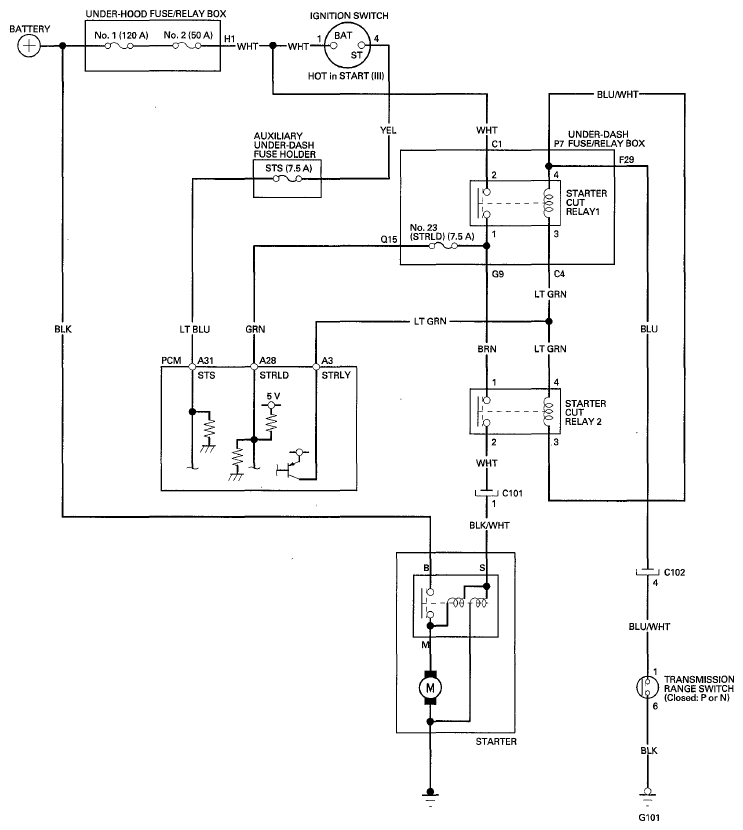

Fig 1: Identifying Starting System - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
