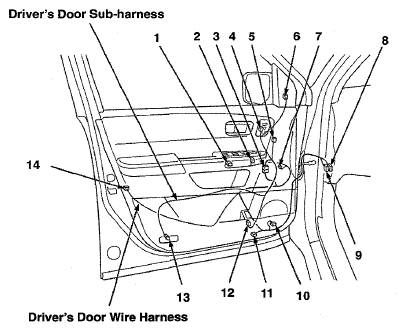

Driver's Door Sub-harness (DPMS)
| Ref | Connector or Terminal | Cavities/Color | Location | Connects to | Notes |
|---|---|---|---|---|---|
| 3 | C753 (Male) | 34-WHT | Driver's Door | Driver's Door Wire Harness (see Driver's Door Wire Harness (DPMS) ) | |
| 4 | Driving Position Memory Switch | 10-GRN | Driver's Door | ||
| 5 | Power Mirror Control Unit | 24-GRY | Driver's Door | ||
| 6 | Left Power Mirror | 16-WHT | Driver's Door | ||
| 12 | Driver's Door Power Tailgate Switch | 5-WHT | Driver's Door | Power Tailgate | |
| 13 | Driver's Door Courtesy Light | 2-GRY | Driver's Door |
