Pilot EX, 3.5 3
>>
Repair and Diagnosis
>>
Body & Frame
>>
Mirrors
>>
Power Mirrors
>>
Component Location Index
Component Location Index

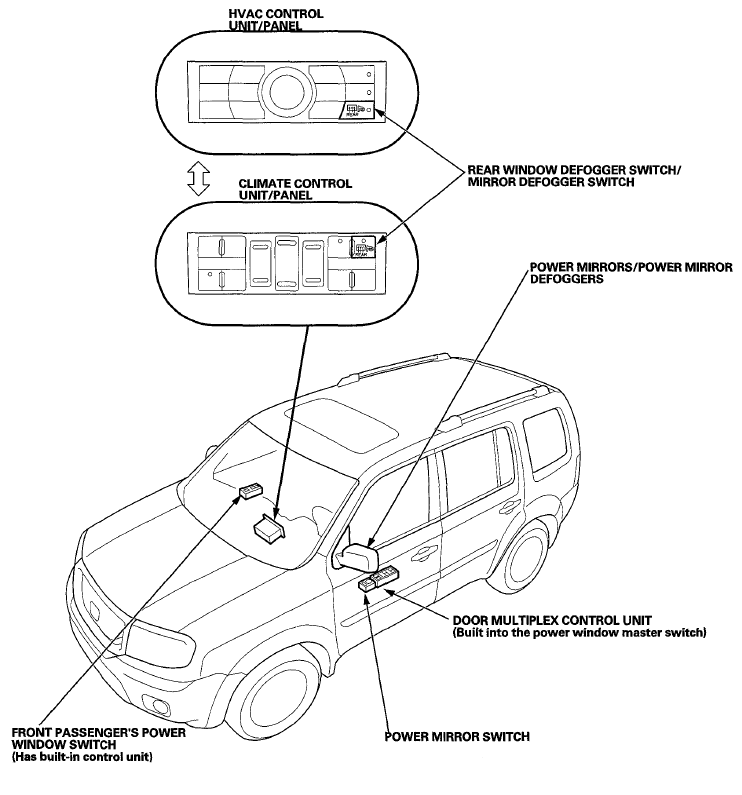

Fig 1: Identifying Power Mirrors Replacement Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
