Spare Tire Support Bracket Replacement

  1. Remove these items:
  2. Remove the bolts, then remove the spare tire support bracket (A).

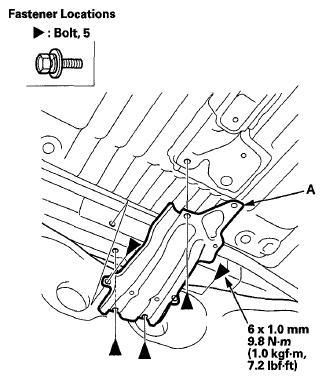

    3. Fig 1: Spare Tire Support Bracket And Bolts With Torque Specifications
    G05963603Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the spare tire support bracket in the reverse order of removal.
