Pilot EX, 3.5 3
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
HOMELINK Remote Control System
>>
Circuit Diagram
Circuit Diagram

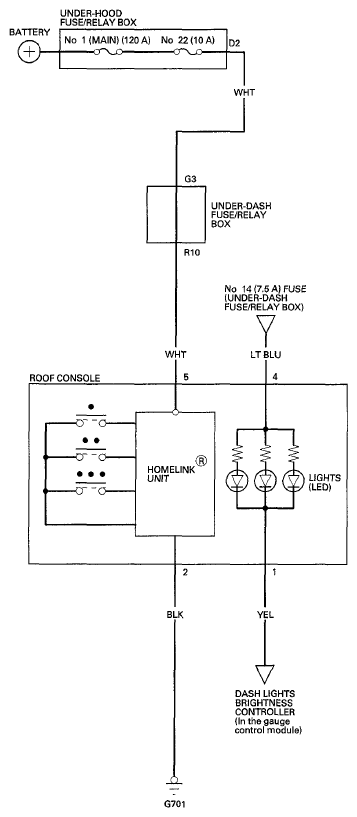

Fig 1: Homelink Remote Control System - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
