Keyless/Power Door Locks/Security System: Notes

NOTE: For connector or component location "PHOTO", see OEM-COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

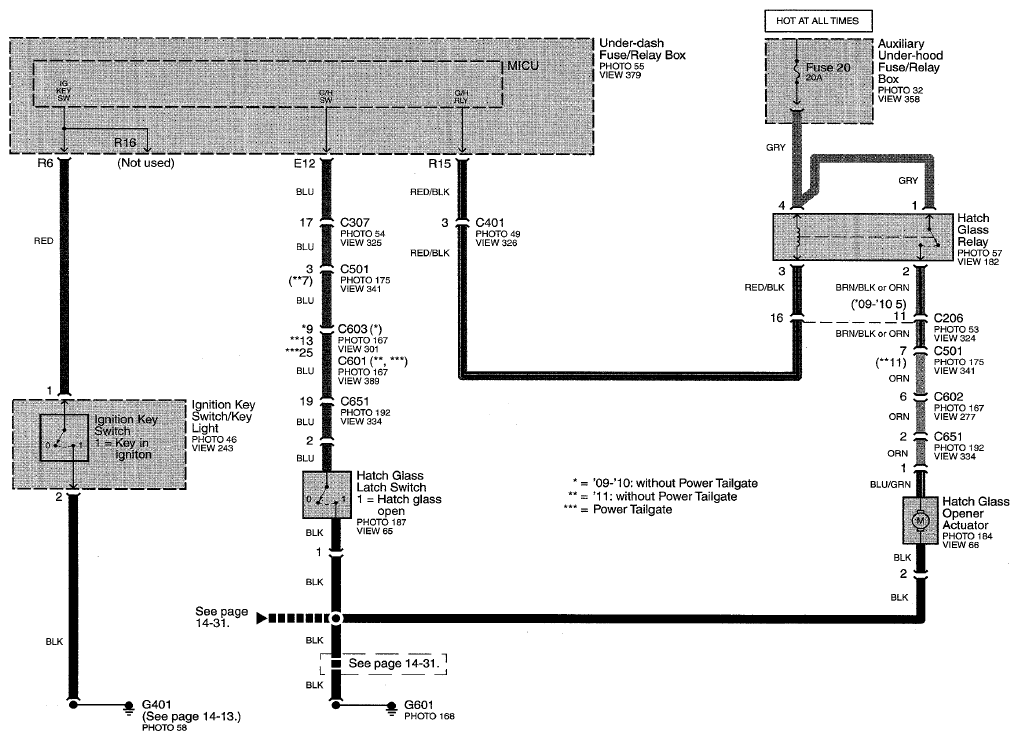

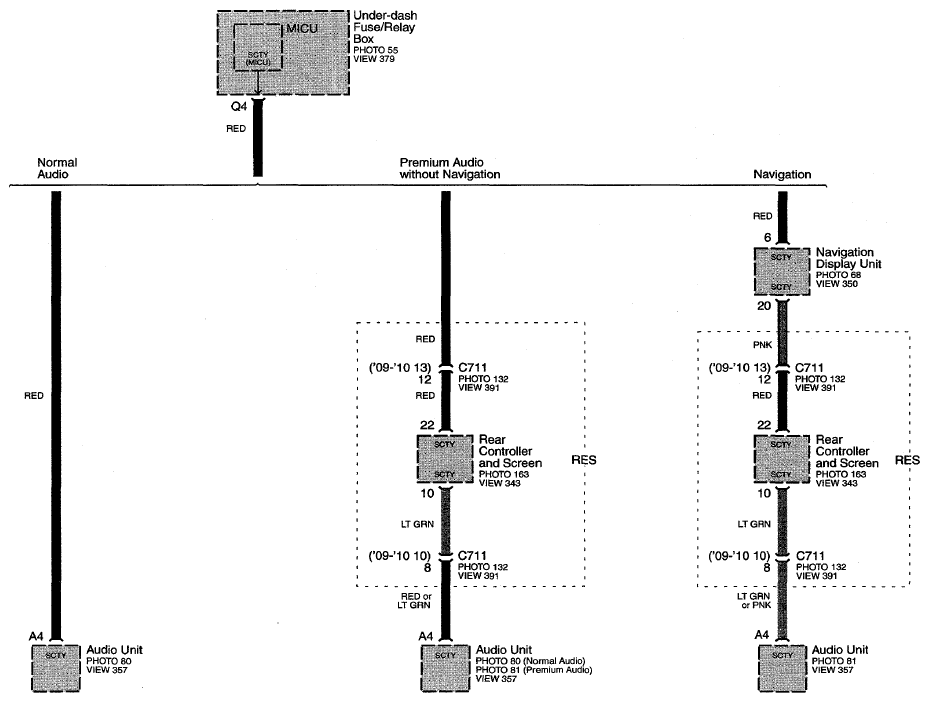

Fig 1: Keyless/Power Door Locks/Security System Circuit Diagram (Page 130)

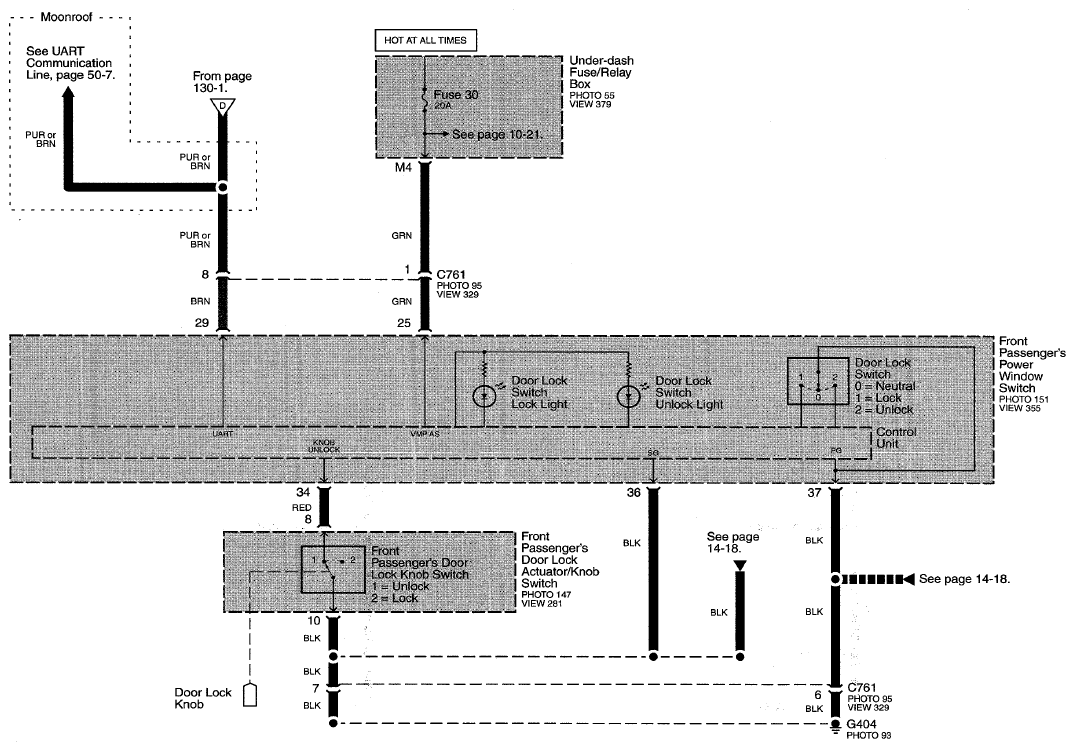

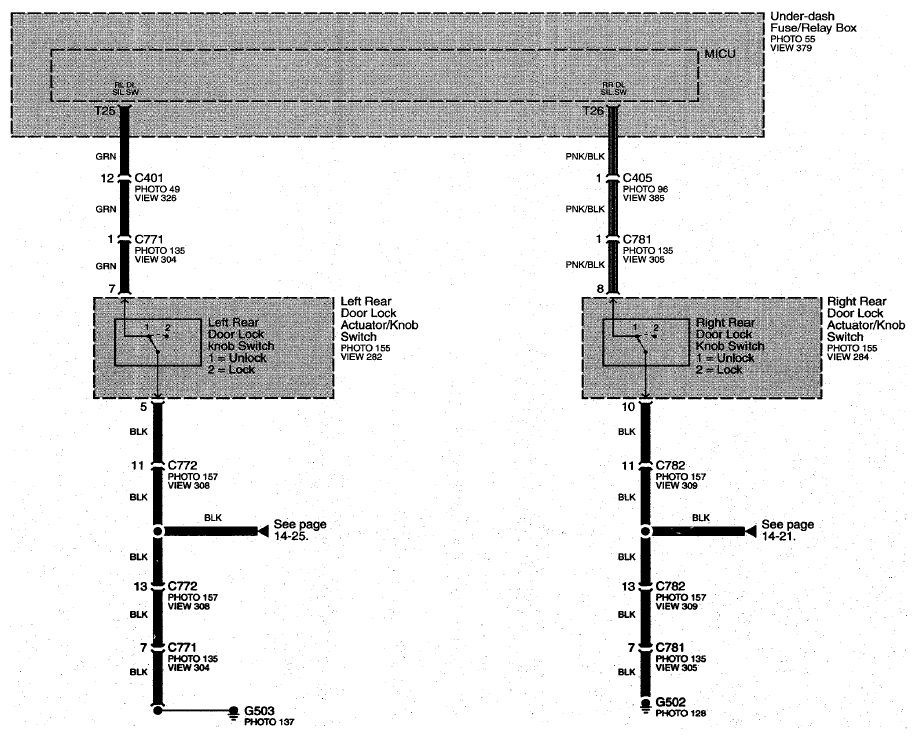

Fig 2: Keyless/Power Door Locks/Security System Circuit Diagram (Page 130-1)

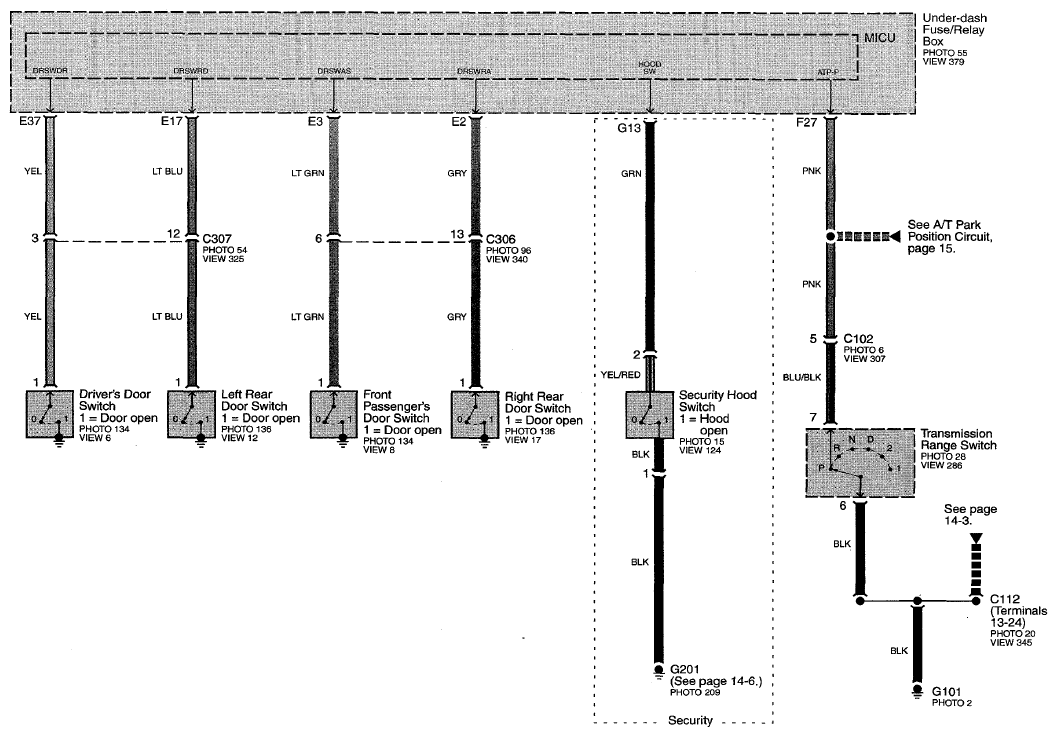

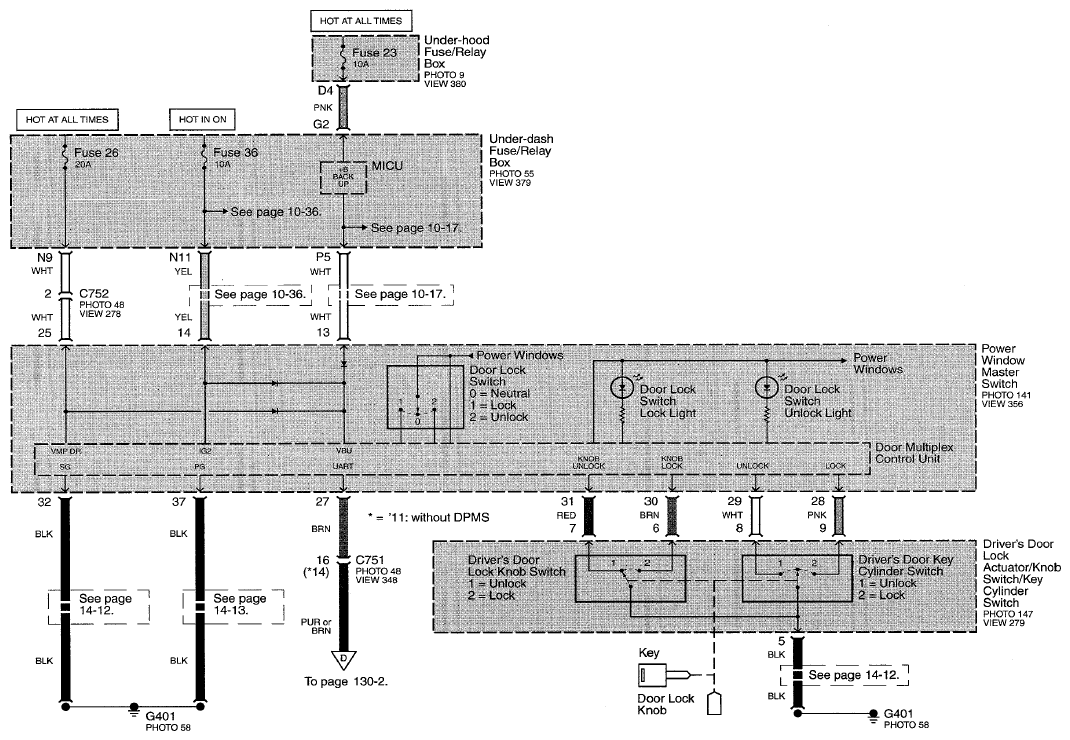

Fig 3: Keyless/Power Door Locks/Security System Circuit Diagram (Page 130-2)

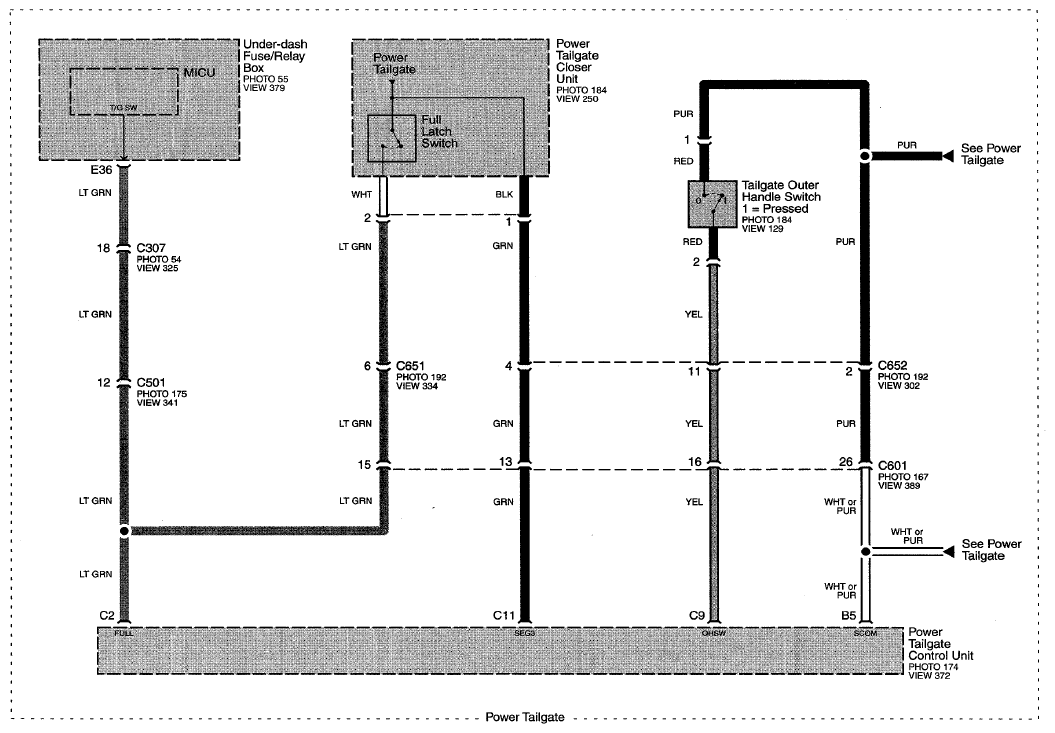

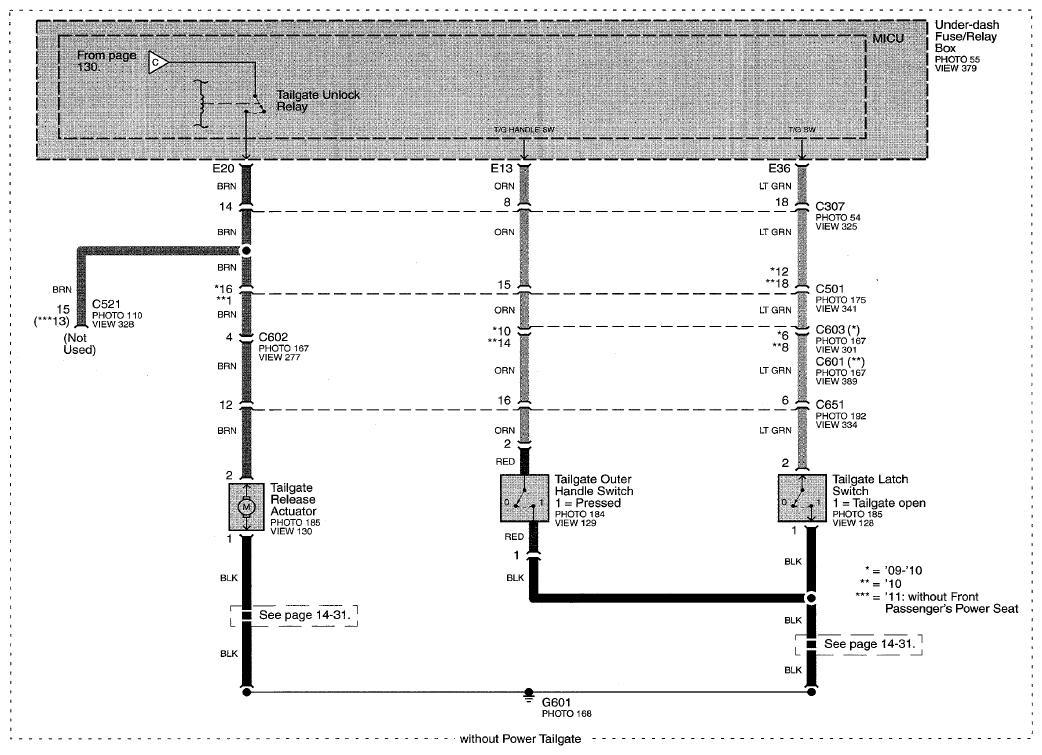

Fig 4: Keyless/Power Door Locks/Security System Circuit Diagram (Page 130-3)

Fig 5: Keyless/Power Door Locks/Security System Circuit Diagram (Page 130-4)

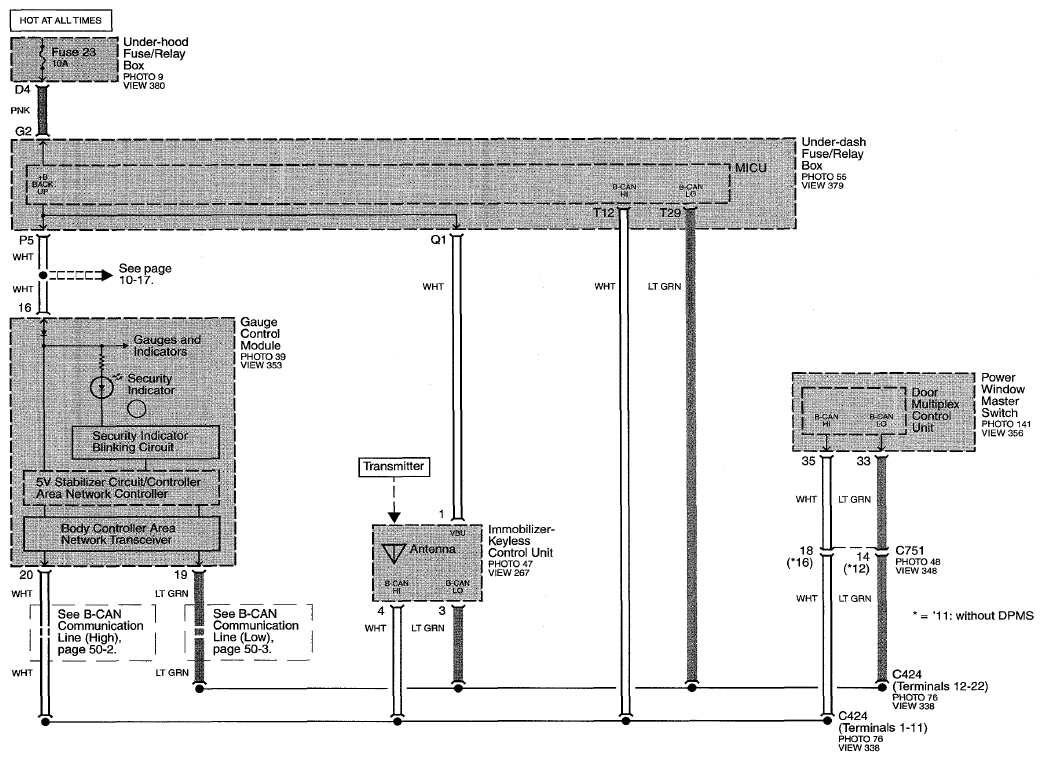

Fig 6: Keyless/Power Door Locks/Security System Circuit Diagram (Page 130-5)

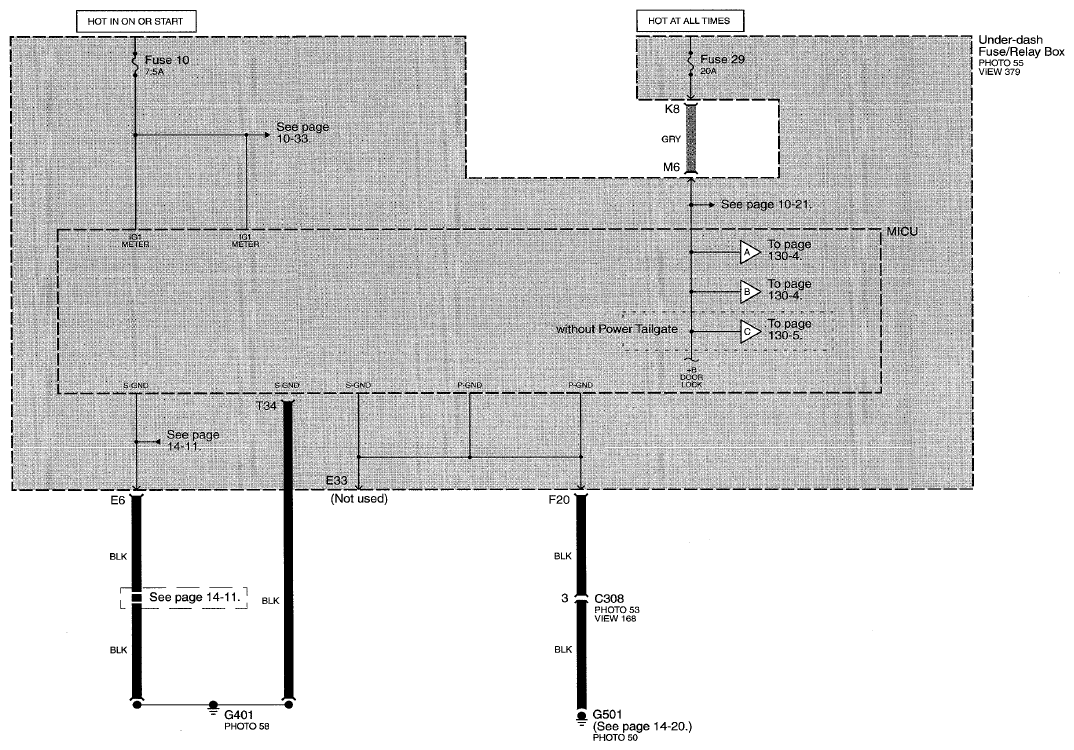

Fig 7: Keyless/Power Door Locks/Security System Circuit Diagram (Page 130-6)

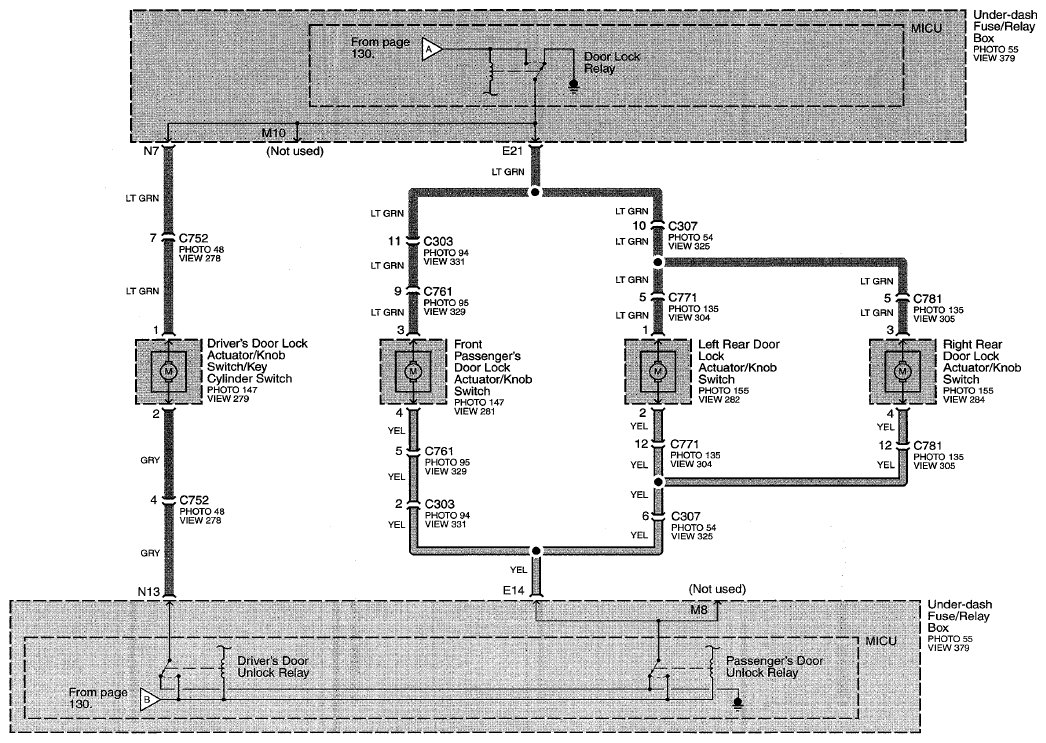

Fig 8: Keyless/Power Door Locks/Security System Circuit Diagram (Page 130-7)

Fig 9: Keyless/Power Door Locks/Security System Circuit Diagram (Page 130-8)

Fig 10: Keyless/Power Door Locks/Security System Circuit Diagram (Page 130-9)

Fig 11: Keyless/Power Door Locks/Security System Circuit Diagram (Page 130-10)

Fig 12: Keyless/Power Door Locks/Security System Circuit Diagram (Page 130-11)
