DTC P2101: Electronic Throttle Control System (ETCS) Malfunction: Notes

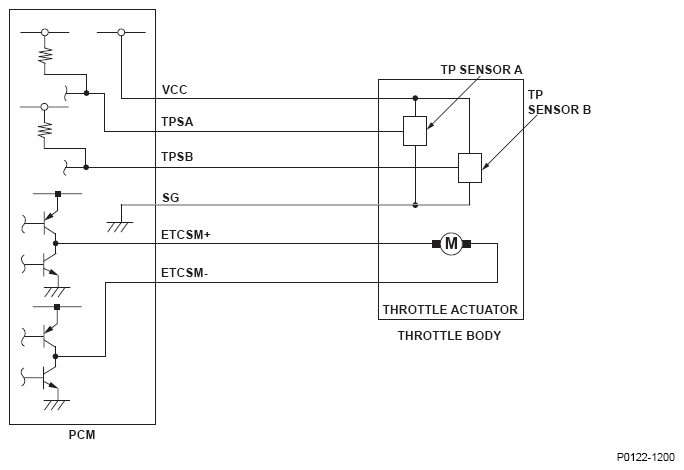

Fig 1: Electronic Throttle Control System (ETCS) - Circuit Diagram

G08538358
