Left Power Mirror Connector End View (View 318)
Left Power Mirror Connector End View (View 318)
WHT
Driver's Door
On Driver's Door Wire Harness

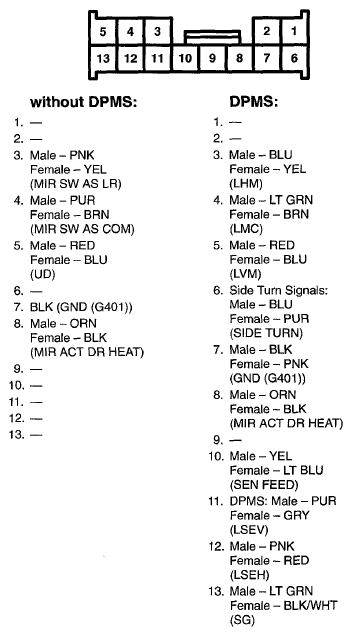

Fig 1: Left Power Mirror Connector Terminals (View 318)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
