Center Junction Box Connector End View (View 385)

Behind Glove Box
On Dashboard Wire Harness (View of Middle to Passenger's Side)
Connector A
- GRY

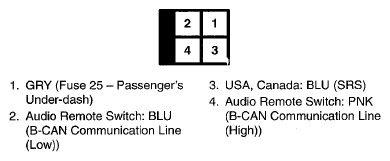

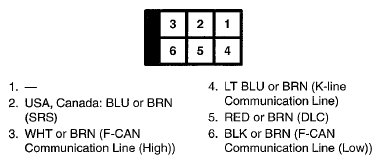

Fig 1: Center Junction Box Connector Terminals - Connector A (View 385)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector B
- BLU

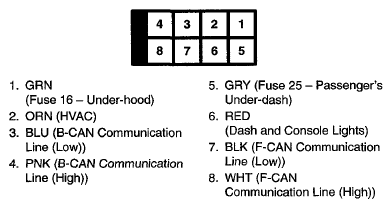

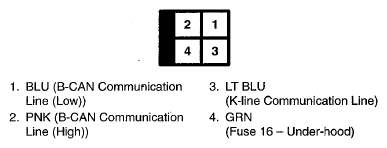

Fig 2: Center Junction Box Connector Terminals - Connector B (View 385)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector C
- BRN

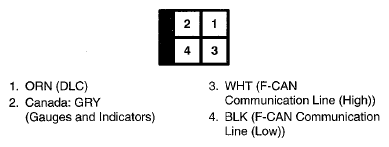

Fig 3: Center Junction Box Connector Terminals - Connector C (View 385)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector D
- WHT

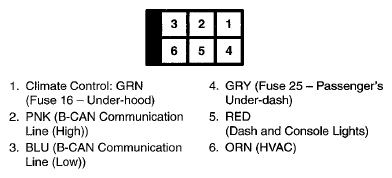

Fig 4: Center Junction Box Connector Terminals - Connector D (View 385)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector E
- GRY

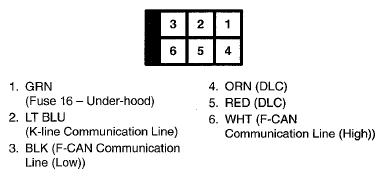

Fig 5: Center Junction Box Connector Terminals - Connector E (View 385)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector F
- BLU

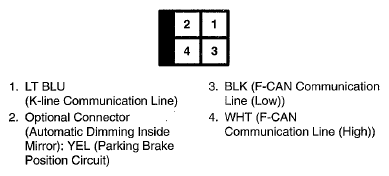

Fig 6: Center Junction Box Connector Terminals - Connector F (View 385)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector G
- BRN

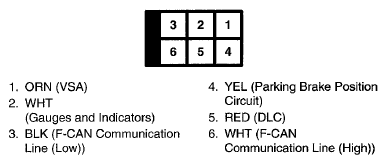

Fig 7: Center Junction Box Connector Terminals - Connector G (View 385)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector H
- WHT

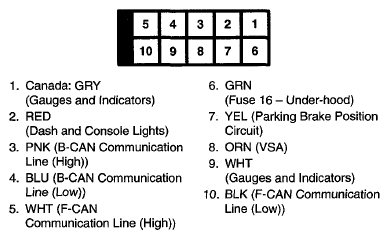

Fig 8: Center Junction Box Connector Terminals - Connector H (View 385)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector J
- WHT
Fig 9: Center Junction Box Connector Terminals - Connector J (View 385)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector K
- WHT
Fig 10: Center Junction Box Connector Terminals - Connector K (View 385)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
