BSI OFF Switch Connector End View (BSI System) (View 253)

• WHT
• Left Side of Dash
• On Dashboard Wire Harness (View of Driver's Side)

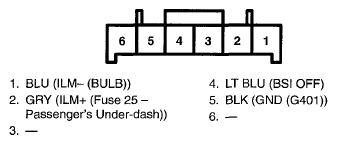

Fig 1: BSI OFF Switch (BSI System) Connector Terminals (View 253)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
