Odyssey Touring
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Battery Management System
>>
Circuit Diagram
Circuit Diagram

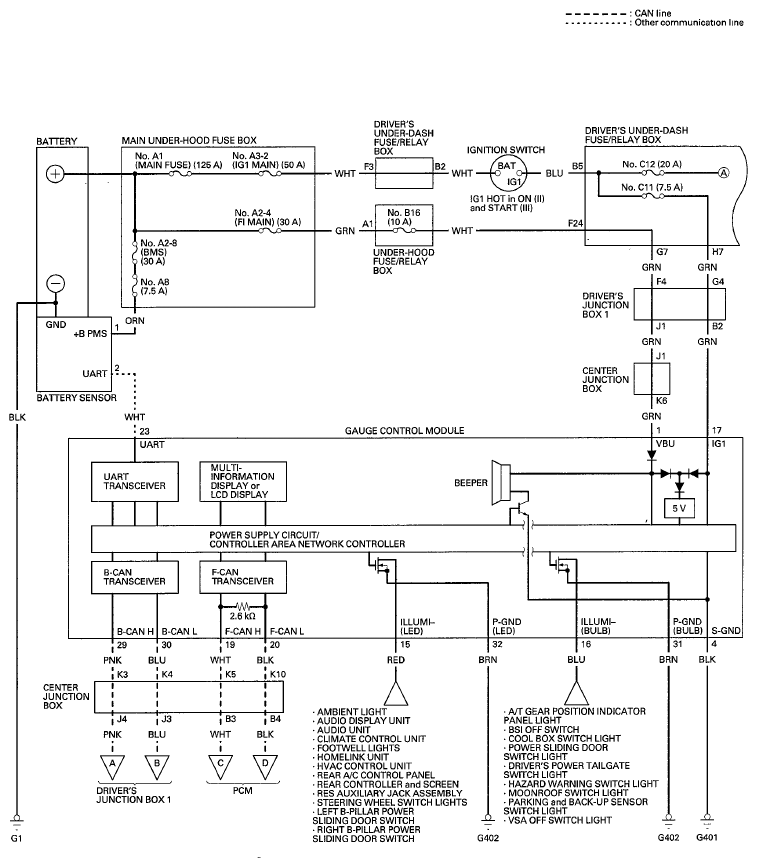

Fig 1: Identifying Battery Management System Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

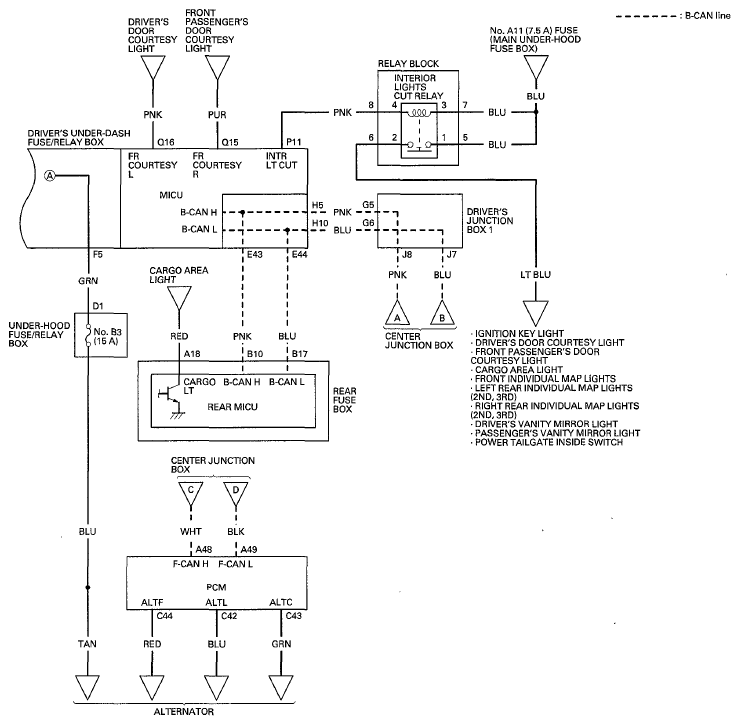

Fig 2: Identifying Battery Management System Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
