Power Seat Control Unit Connector End View (DPMS) (View 397)

Under Driver's Seat
On Driver's Seat Wire Harness
Connector A
- GRY/WHT

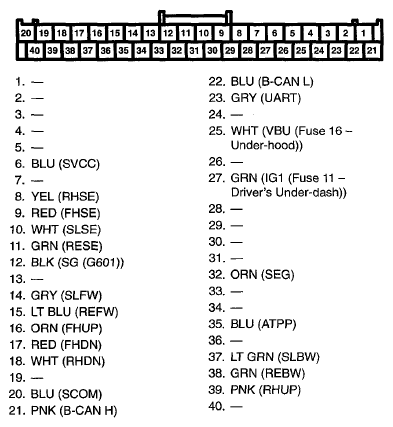

Fig 1: Power Seat Control Unit (DPMS) Connector Terminals - Connector A (View 397)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector B
- GRY
Fig 2: Power Seat Control Unit (DPMS) Connector Terminals - Connector B (View 397)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
