Windshield Wiper Motor Connector End View (View 151)

• GRY
• Under Left Side of Cowl Cover
• On Windshield Wiper Motor Sub-harness

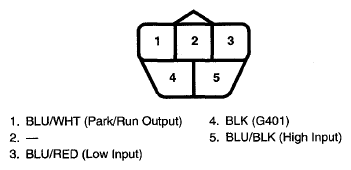

Fig 1: Windshield Wiper Motor Connector Terminal (View 151)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
