Intake Side Ignition Coil Connector End View (View 104)

• BLK
• Middle of Engine
• On Engine Wire Harness

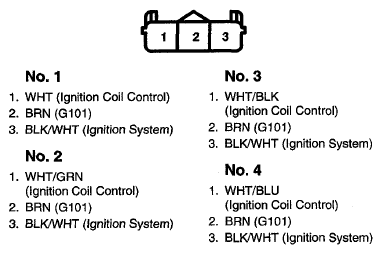

Fig 1: Intake Side Ignition Coil Connector Terminal (View 104)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
