Component Location Index

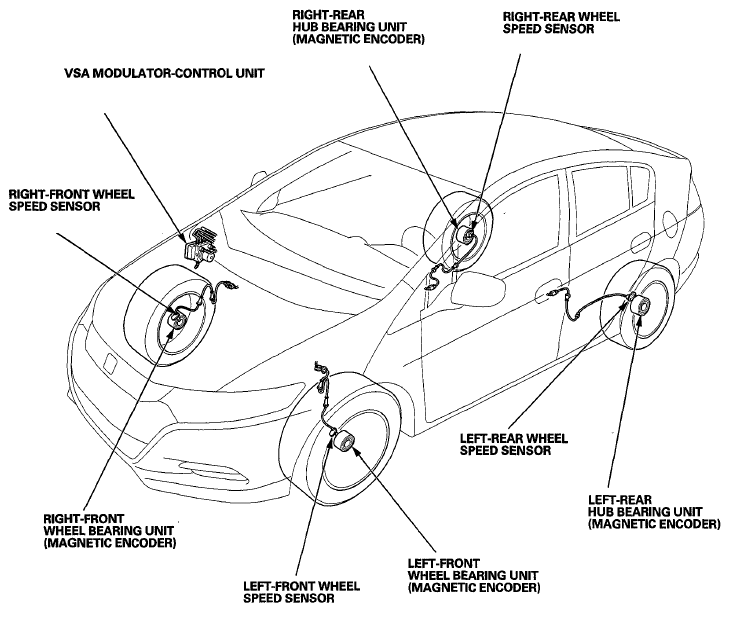

Fig 1: Identifying VSA Component Location (1 Of 2)
G06430806Courtesy of AMERICAN HONDA MOTOR CO., INC.

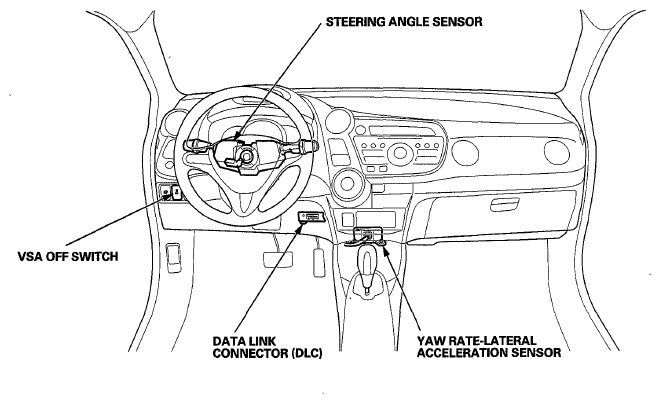

Fig 2: Identifying VSA Component Location (2 Of 2)
G06430807Courtesy of AMERICAN HONDA MOTOR CO., INC.
