LEMON Manuals
: Even more car manuals for everyone
Home
>>
Honda
>>
2011
>>
Insight EX
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Continuously Variable Transmission (CVT)
>>
CVT Differential
>>
Component Location Index
Component Location Index

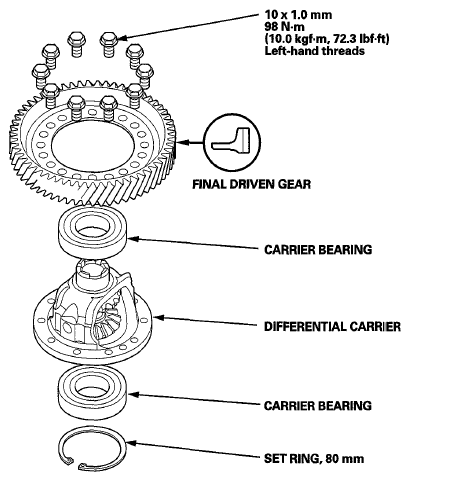

Fig 1: CVT Differential Replacement Components And Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
