Repair and Diagnosis (Single Page)
>>
Electrical
>>
Body Electrical
>>
OEM Circuit Diagrams
>>
Navigation System
>>
Notes
Navigation System: Notes
NOTE:
For connector or component location "PHOTO", see
OEM-COMPONENT LOCATION
. For connector "VIEW", see
OEM CONNECTOR END VIEWS
.

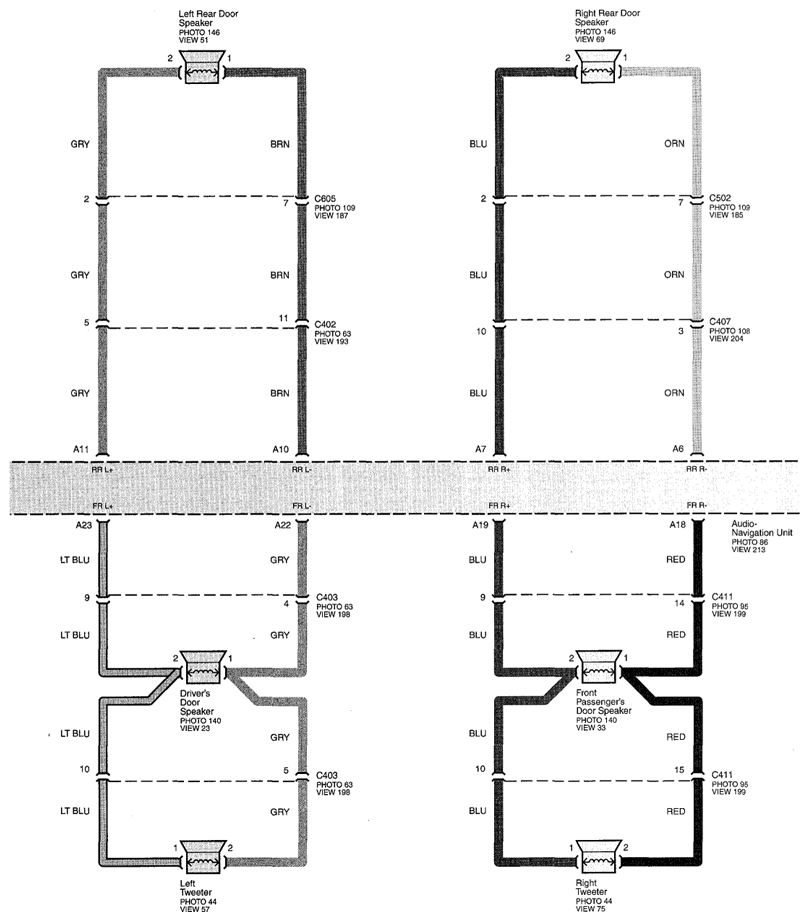

Fig 1: Navigation System Circuit Diagram (Page 156)

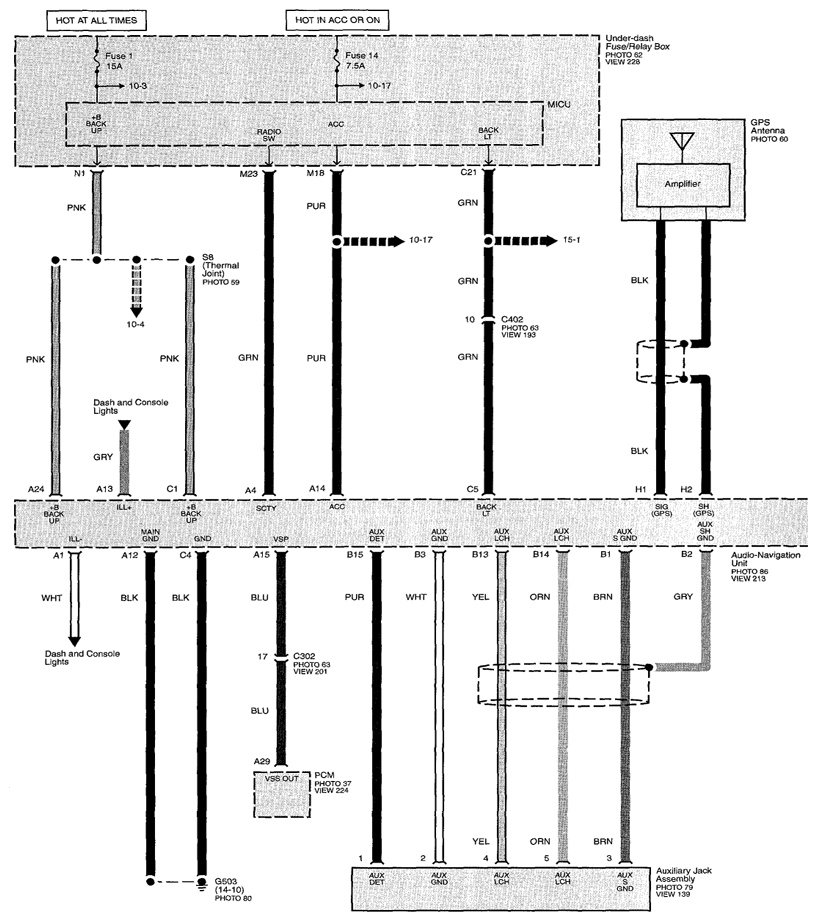

Fig 2: Navigation System Circuit Diagram (Page 156-1)

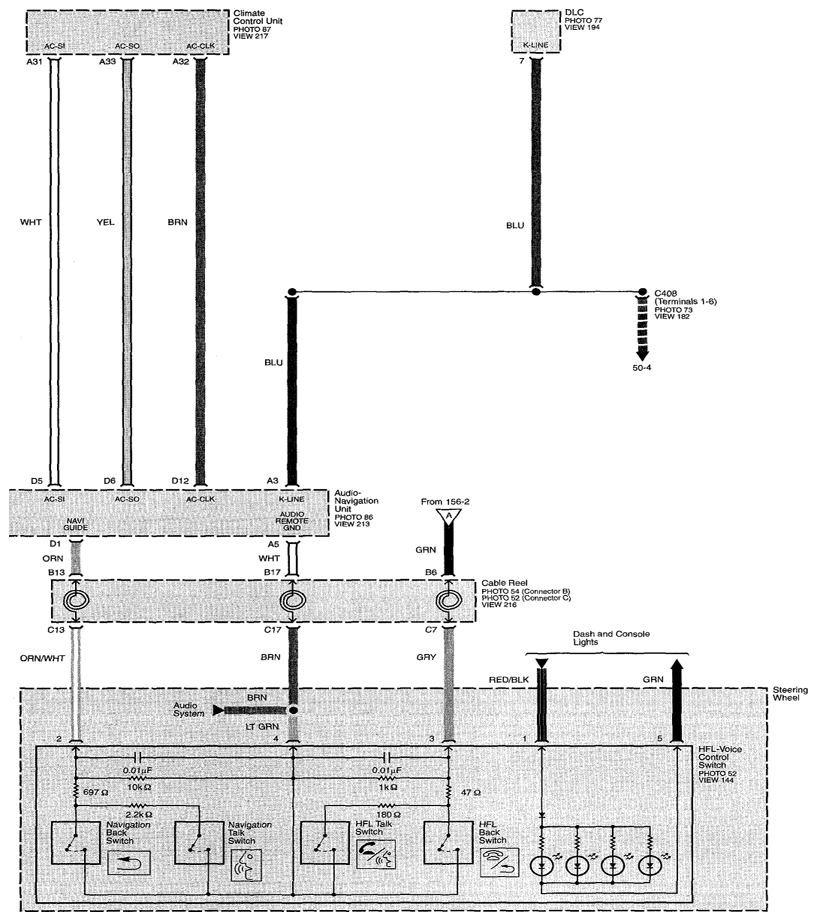

Fig 3: Navigation System Circuit Diagram (Page 156-2)

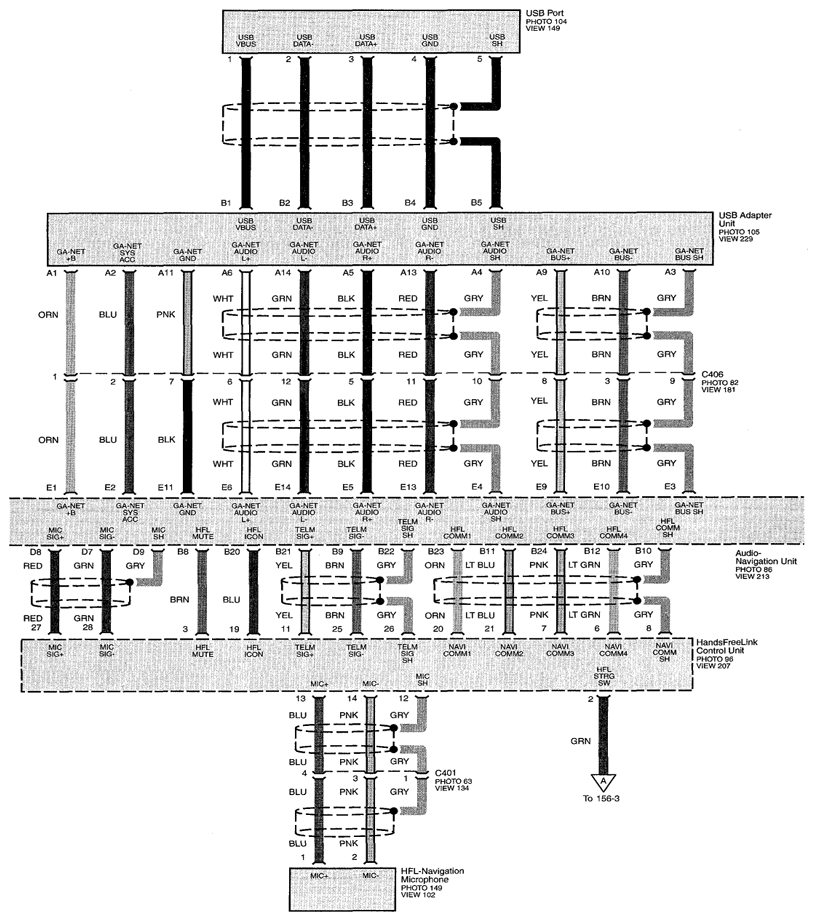

Fig 4: Navigation System Circuit Diagram (Page 156-3)
