R Position: Reverse Inhibitor Control

If R is selected while the vehicle is moving forward at speeds over 6 mph (10 km/h), the PCM outputs a signal to turn ON the reverse inhibitor solenoid, and reverse inhibitor pressure (RI) in the right end of the reverse inhibitor valve is released. The reverse inhibitor valve is moved to the right side, and uncovers the stop reverse brake pressure port leading to the reverse brake from the manual valve. Reverse brake pressure (RVS) is not applied to the reverse brake, and power is not transmitted to the reverse direction.

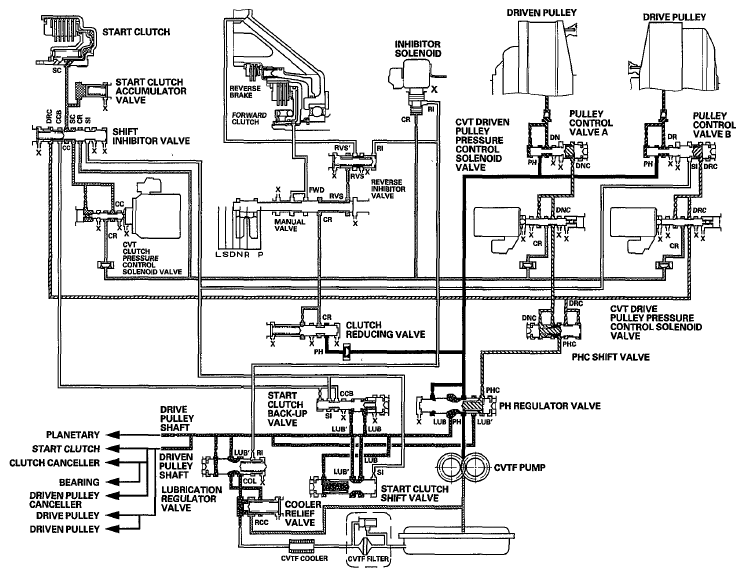

Fig 1: CVT System Hydraulic Flow Diagram - R Position (Reverse Inhibitor Control)
