Inhibitor Solenoid Replacement

  1. Remove the lower valve body (see LOWER VALVE BODY REMOVAL/INSTALLATION  ).
  2. Disconnect the inhibitor solenoid connector (A).

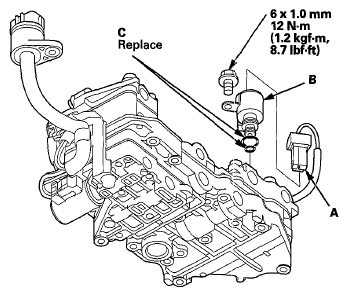

    Fig 1: Inhibitor Solenoid With Torque Specifications And Connector
    G06430125Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the inhibitor solenoid (B), then remove the O-rings (C) from the inhibitor solenoid.
  4. Install new O-rings on a new inhibitor solenoid, then install the inhibitor solenoid on the CVT driven pulley pressure control valve.
  5. Connect the inhibitor solenoid connector.
  6. Install the lower valve body (see LOWER VALVE BODY REMOVAL/INSTALLATION  ).
