Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Continuously Variable Transmission (CVT)
>>
Component Location Index
>>
Six-position Transmission
Six-position Transmission

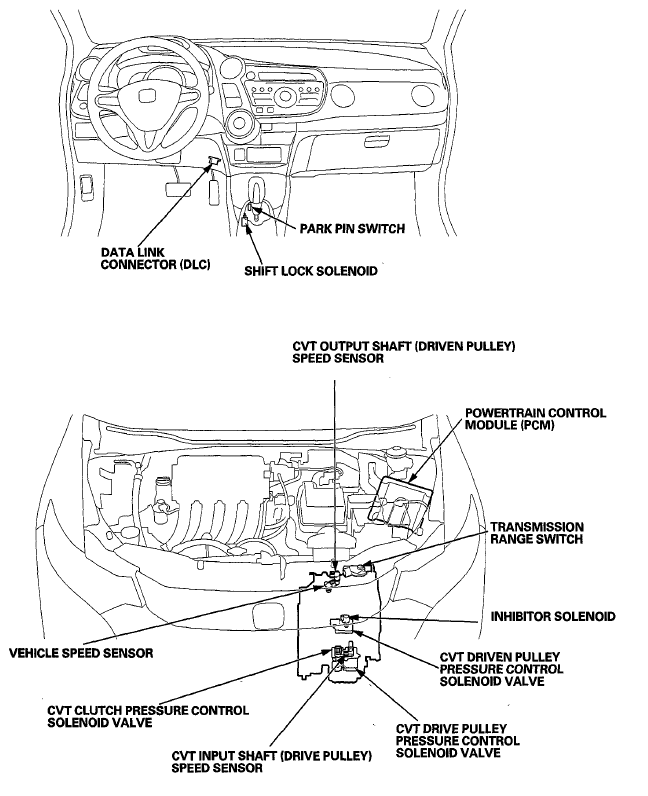

Fig 1: Identifying Six-Position Transmission Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
