Home
>>
Honda
>>
2011
>>
Insight Base
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Continuously Variable Transmission (CVT)
>>
Component Location Index
>>
Five-position Transmission
Five-position Transmission

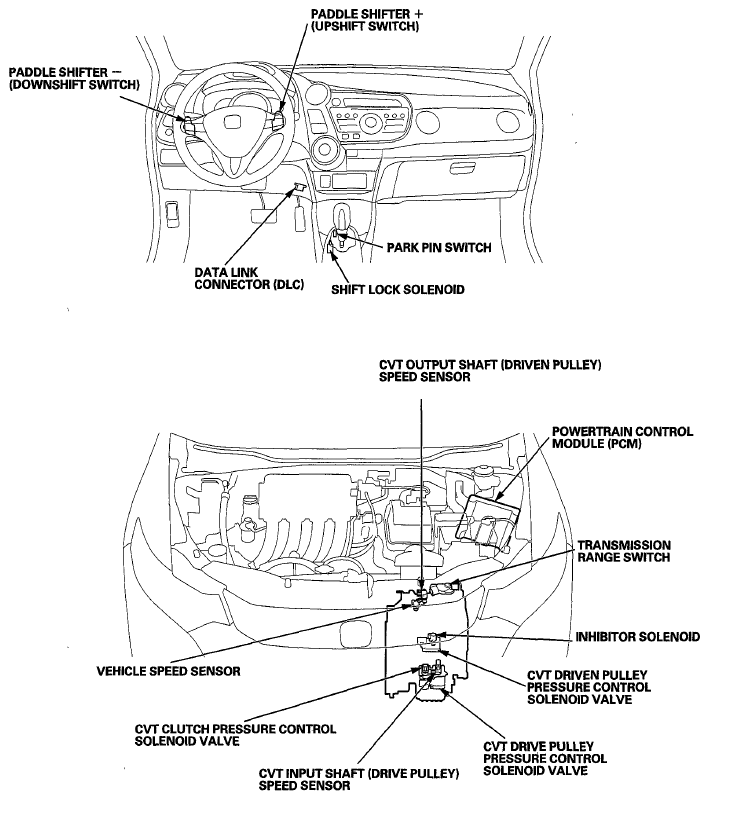

Fig 1: Identifying Five-Position Transmission Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
