C603 Connector End View (View 202)
C603 Connector End View (View 202)
WHT
Left Side of Cargo Area
Connects Driver's Side Wire Harness to IPU Wire Harness

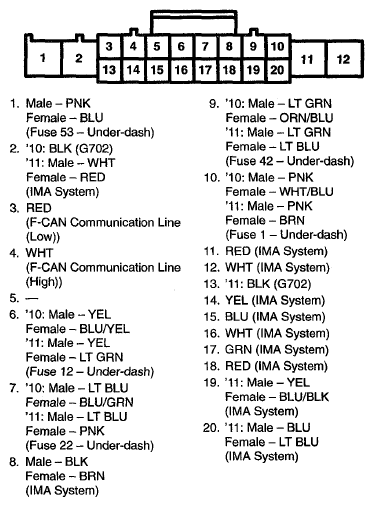

Fig 1: C603 Connector Terminal (View 202)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
