Honda
>>
2011
>>
Insight Base
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Circuit Diagrams
>>
SRS
OEM Circuit Diagrams: SRS
NOTE:
For connector or component location "PHOTO", see
OEM-COMPONENT LOCATION
. For connector "VIEW", see
OEM CONNECTOR END VIEWS
.

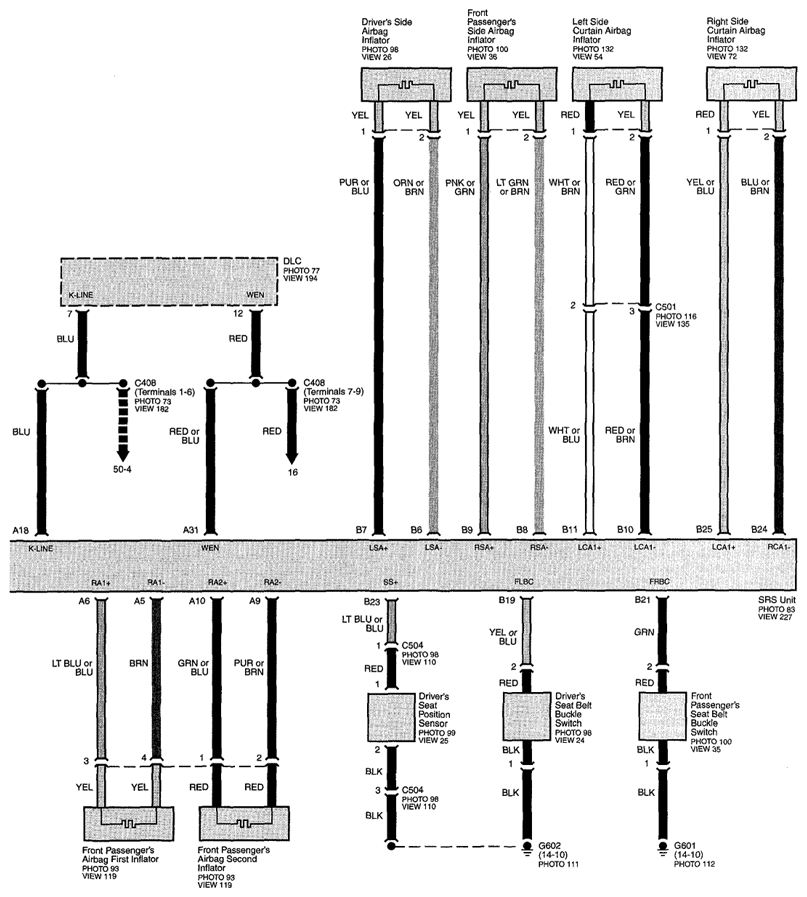

Fig 1: SRS Circuit Diagram (Page 47)

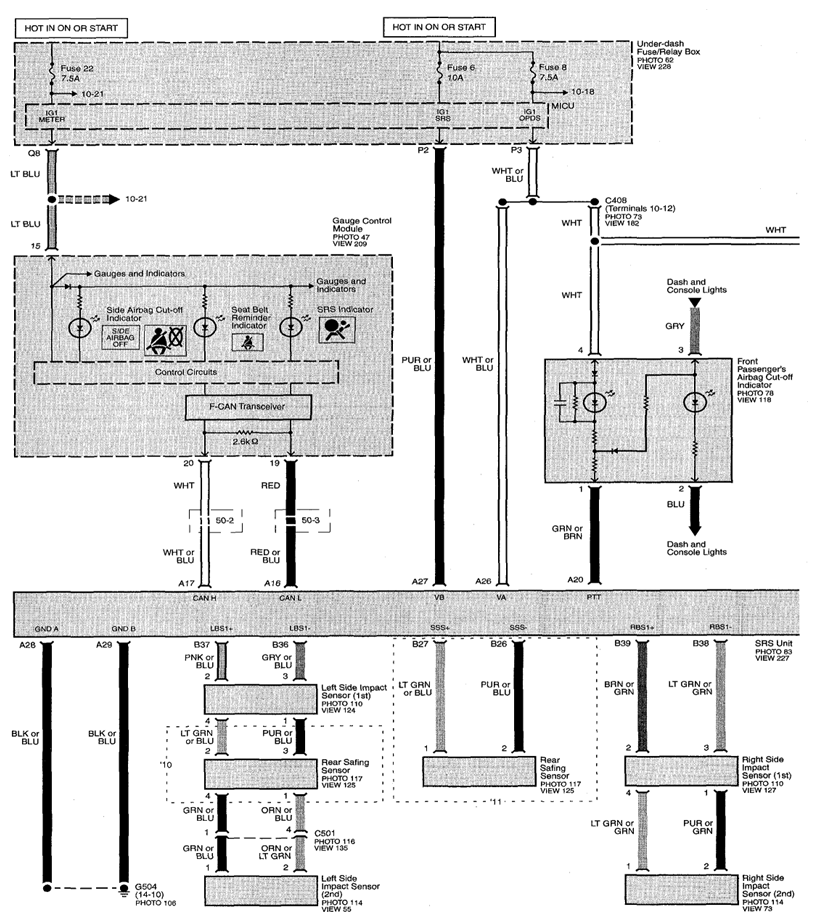

Fig 2: SRS Circuit Diagram (Page 47-1)

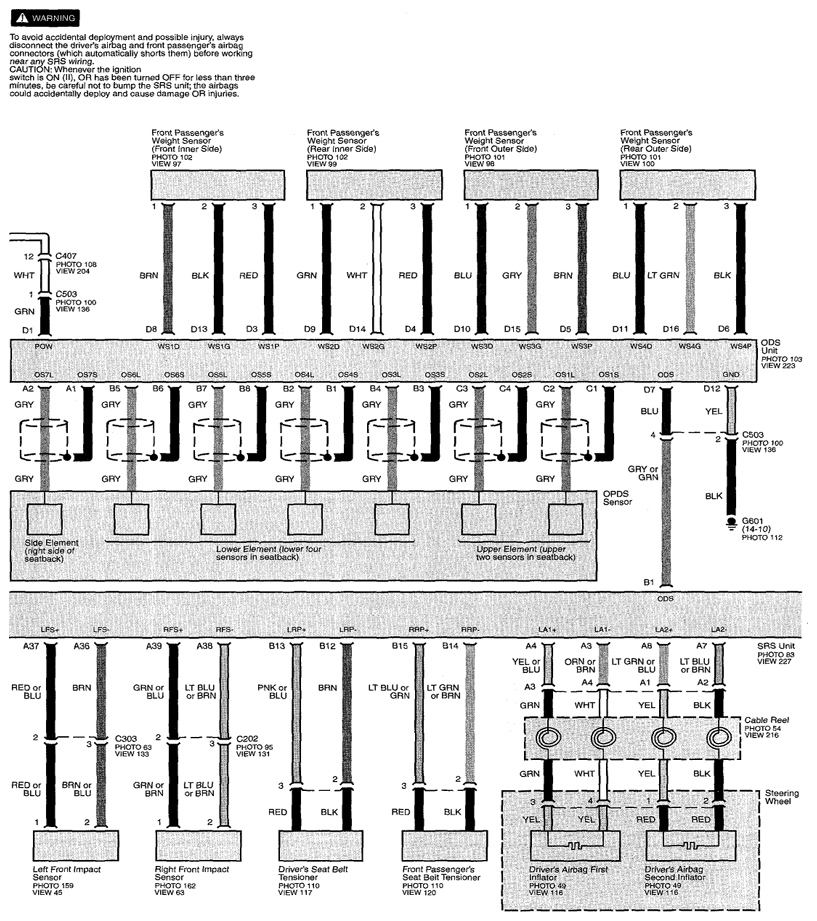

Fig 3: SRS Circuit Diagram (Page 47-2)
