Rear Wiper/Washer
>>
Notes
Rear Wiper/Washer: Notes
NOTE:
For connector or component location "PHOTO", see
OEM-COMPONENT LOCATION
. For connector "VIEW", see
OEM CONNECTOR END VIEWS
.

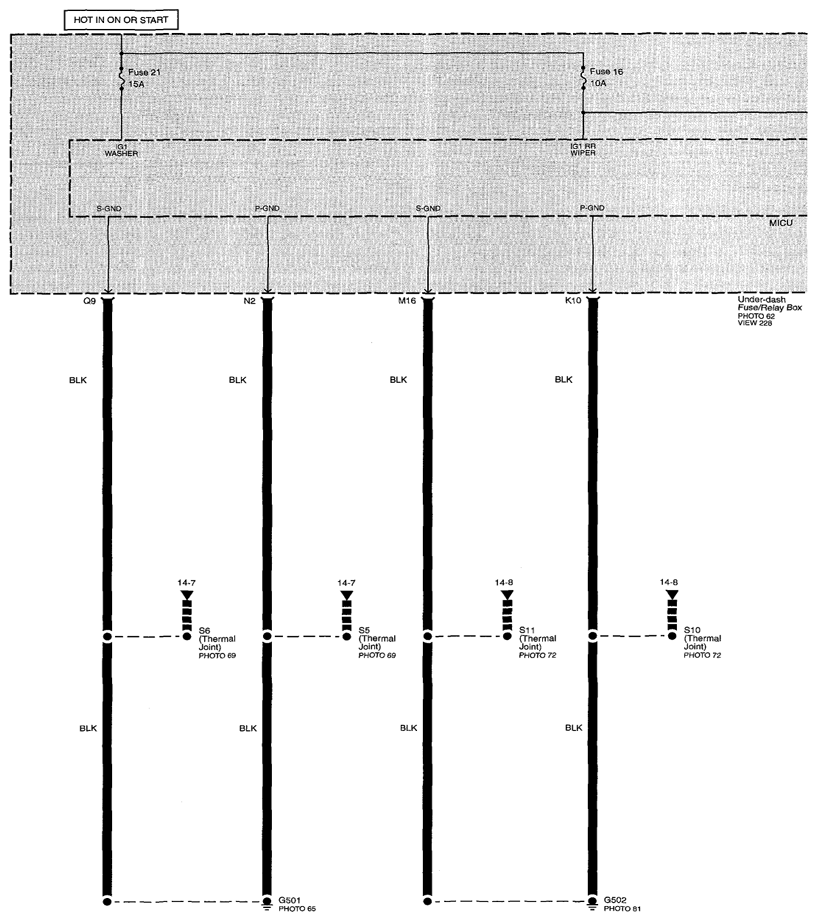

Fig 1: Rear Wiper/Washer Circuit Diagram (Page 92)

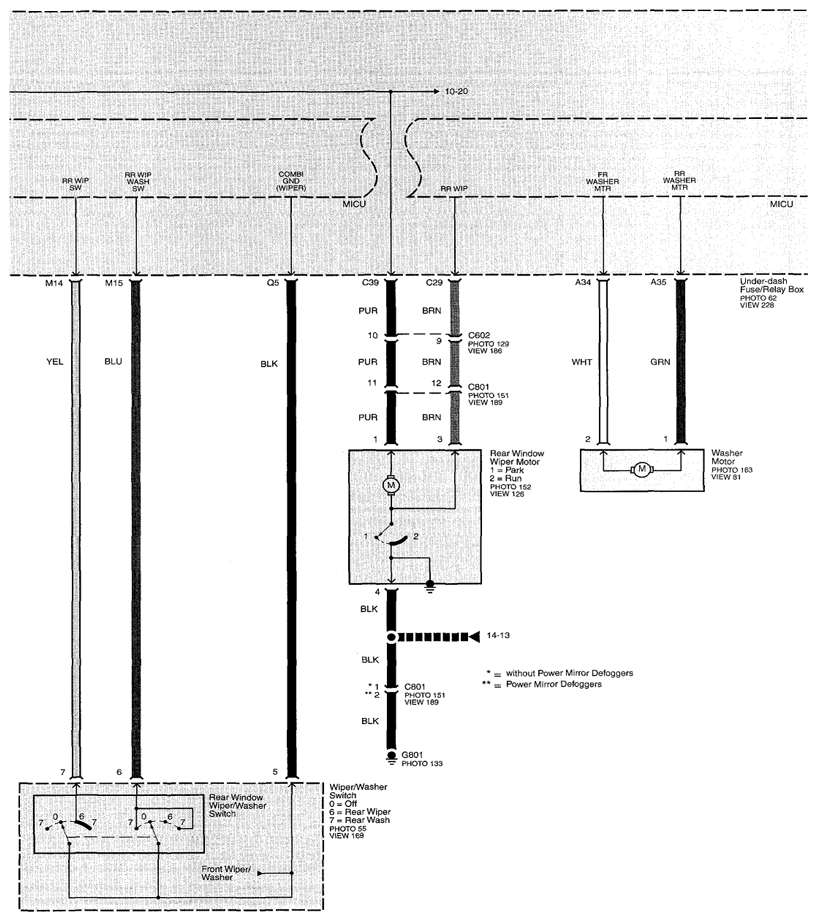

Fig 2: Rear Wiper/Washer Circuit Diagram (Page 92-1)
Fig 3: Rear Wiper/Washer Circuit Diagram (Page 92-2)
