Trailing Arm Brace Replacement

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body.

Remove the middle floor undercover (see RIGHT SIDE ).
Remove the bolts (A, B), then remove the trailing arm brace (C) from the body.

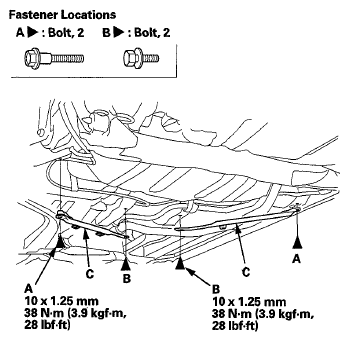

Fig 1: Bolts And Trailing Arm Brace With Torque Specifications (2010)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

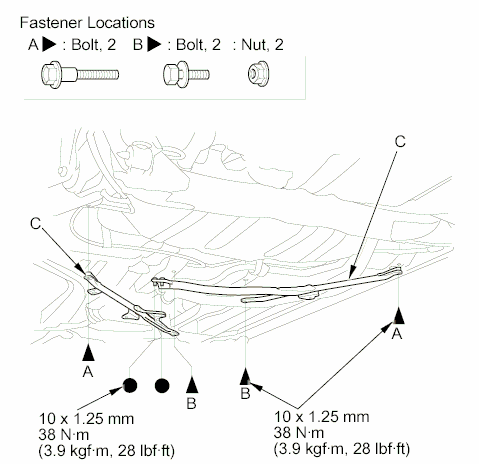

Fig 2: Bolts And Trailing Arm Brace With Torque Specifications (2011)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the trailing arm brace in the reverse order of removal.
