PCM CVT Control System Electrical Connections-Six-position Transmission
PCM CVT Control System Electrical Connections-Six-position Transmission

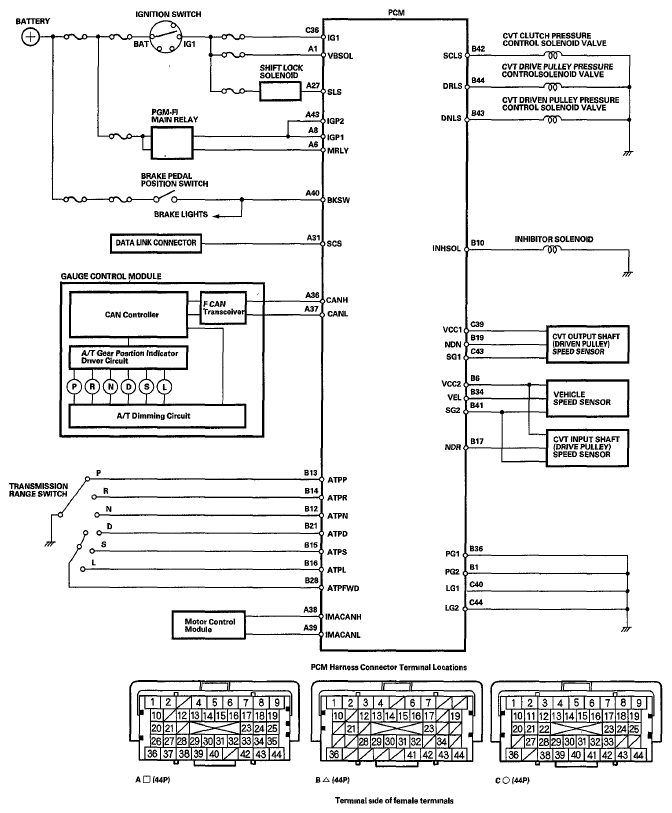

Fig 1: PCM CVT Control System Electrical Connections Circuit Diagram - Six-Position Transmission
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
