Component Location Index

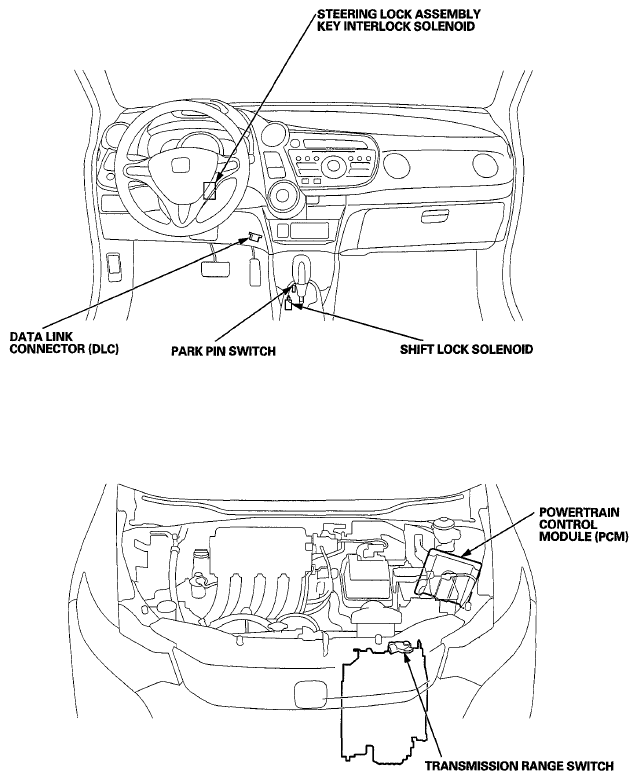

Fig 1: Identifying A/T Interlock System Components

G06430311

Courtesy of AMERICAN HONDA MOTOR CO., INC.
