VSA Modulator-Control Unit Connector End View (VSA) (View 211)
VSA Modulator-Control Unit Connector End View (VSA) (View 211)
BLK/WHT
Right Side of Engine Compartment
On Right Engine Compartment Wire Harness

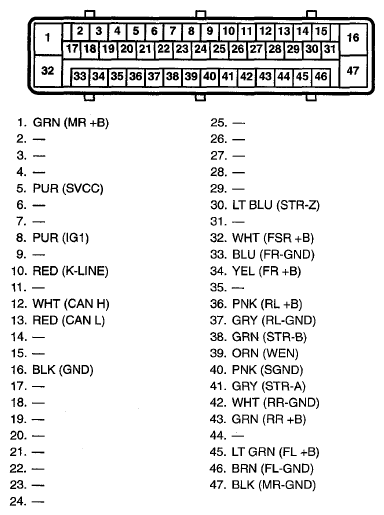

Fig 1: VSA Modulator-Control Unit (VSA) Connector Terminal (View 211)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
