Mode Control Motor Connector End View (View 163)

GRN
Behind Glove Box
On A/C Wire Harness

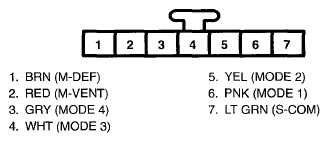

Fig 1: Mode Control Motor Connector Terminal (View 163)

G07760749

Courtesy of AMERICAN HONDA MOTOR CO., INC.
