MPI Module Connector End View (View 178)

GRY
Under IPU Lid
On PCU Wire Harness

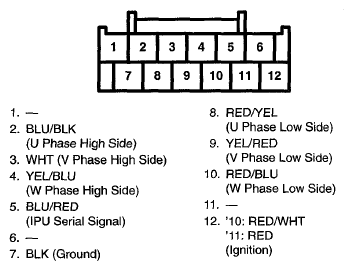

Fig 1: MPI Module Connector Terminal (View 178)

G07760764

Courtesy of AMERICAN HONDA MOTOR CO., INC.
